M101BL is a rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel's quad core N2930 Bay Tail-M processor paired with genuine Intel graphics for high performance. The tablet features a brilliant, in-plane switching with direct optical bonding, projective capacitive touch screen, which is outdoor viewable and offers 1280 x 800 pixel resolution. Weighing at just 2.7 pounds (approx. 1200 grams) the M101BL delivers lightweight mobility in a rugged tablet.
Display Specifications
| Size |
10.1" |
| Brightness |
350 (typ.) |
| Resolution |
1280x800 |
| Contrast Ratio |
800:1 |
| Display Color |
16.7M (6bit + HFRC) |
| Touch |
Multi-Touch Projective Capactive
(supports Rain, Glove, Stylus Modes) |
| Panel Viewability |
Optical Bonding for Sunlight Viewability |
System Specification
| Processor |
Intel® Celeron® Quad Core N2930 1.83 GHz |
| BIOS |
AMI System BIOS |
| Memory |
4GB SODIMM DDR3L-1600 (up to 8GB) |
| LAN Controller |
Intel WG82574L GigaLAN Controller |
| Storage |
64GB mSATA SSD (up to 256GB) |
| Audio |
1W Speaker x2 (Built-in) |
Wireless Communication
| WLAN |
802.11 a/b/g/n |
| Bluetooth |
Bluetooth 4.0 + Class I |
| WWAN |
Optional 4G (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO Rev A, 1xRTT) or optional 3G (HSPA+,GSM/GPRS/EDGE) |
| GPS |
u-Blox Neo-6Q |
I/O Connectors

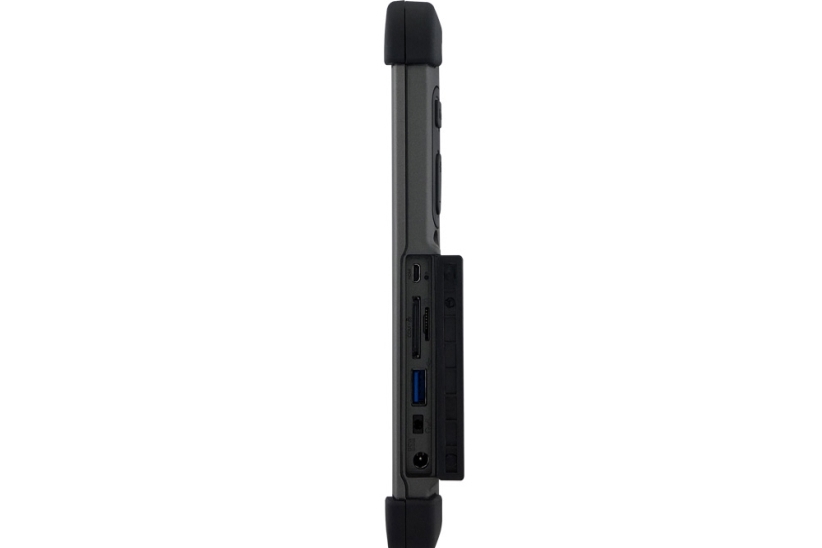

| Right I/O Connectors |
- 1 x Micro HDMI
- 1 x LAN/RS232 Combo Connector
- 1 x USB 3.0
- 1 x Line out/Mic in
- 1 x DC jack
|

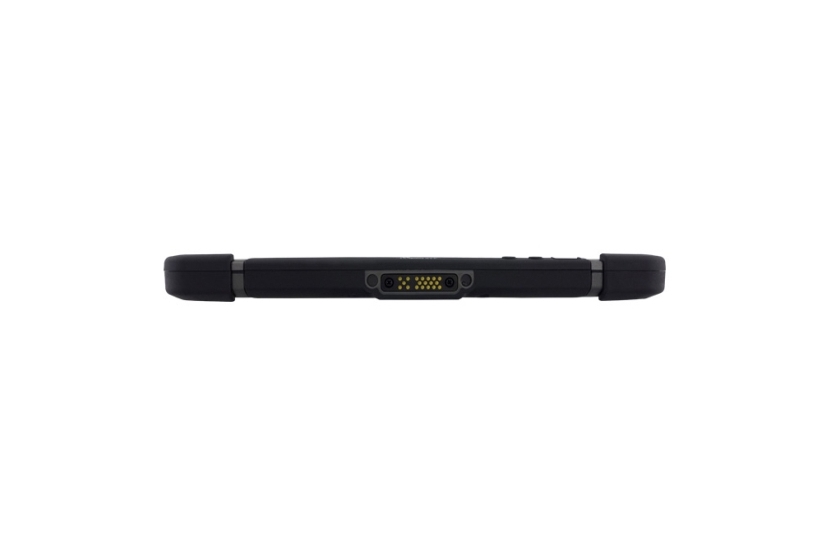

| Downside I/O Connectors |
- 1 x Docking Connector
- 1 x Extension Port (Optional)
|
In front Control
| Control Button |
- 1 x Power Button
- 1 x Menu/Home key
- 2 x Programmable Function Keys
- 1 x Volume up
- 1 x Volume down
|
| LED indicator |
Power, Battery, HDD Access, RF |
Mechanical and Environment
| Dimensions (W x L x H) |
271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches) |
| Net Weight (kg) |
1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery |
| Operating Temperature |
-20°C to 60°C (-4°F to 140°F) |
| IP Proof |
IP65 |
| Operating Humidity |
10% to 90% RH, non condensing |
| Certifications |
CE, FCC, IC, UL 60950 |
Power Management
| Power Input |
12~19V DC |
| Battery |
- 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
- 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
|
| Battery Mark Ver. 4.0.1 Result |
8 hours (tested with MobileMark 2007) |
| Adapter |
100-240V, 50-60Hz, 19V DC |
Product Specification
| OS |
Windows Embedded - 8 Std. / 8.1 Industry Pro / 7 Pro |
Security
| Security |
Password security for user and hard disk lock
Kensington lock slot
Trusted platform module (TPM) V1.2 |
| Mobile Device Management |
SOTI MobiControl compatible |
