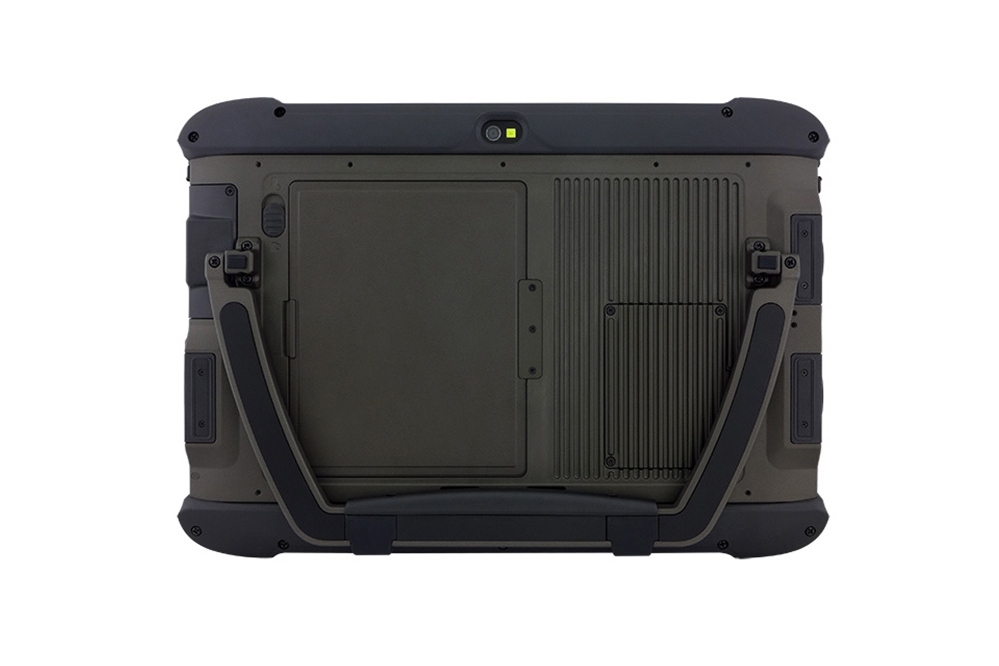

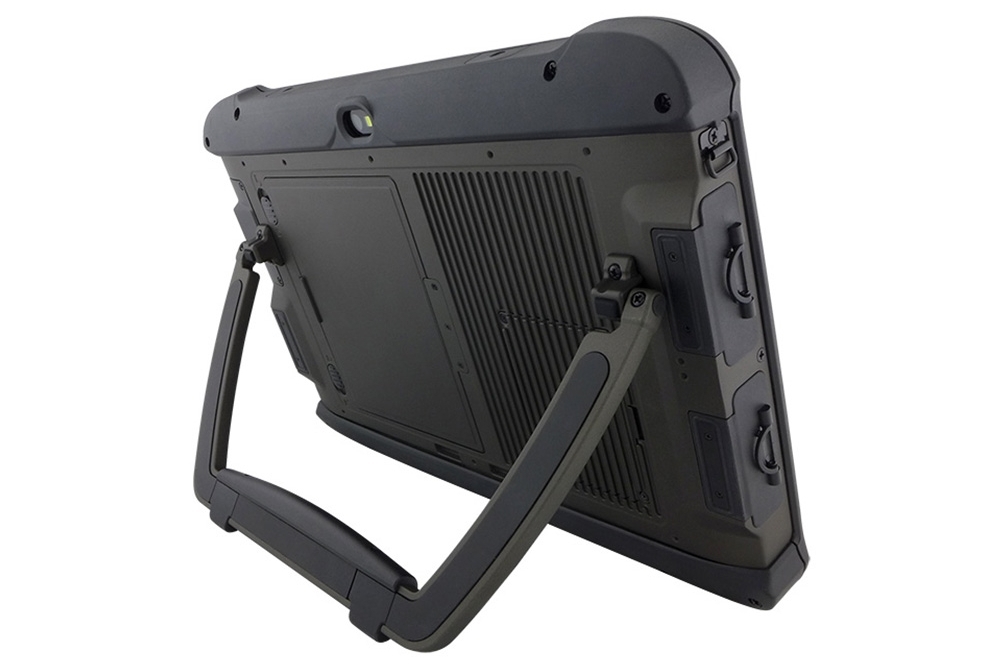

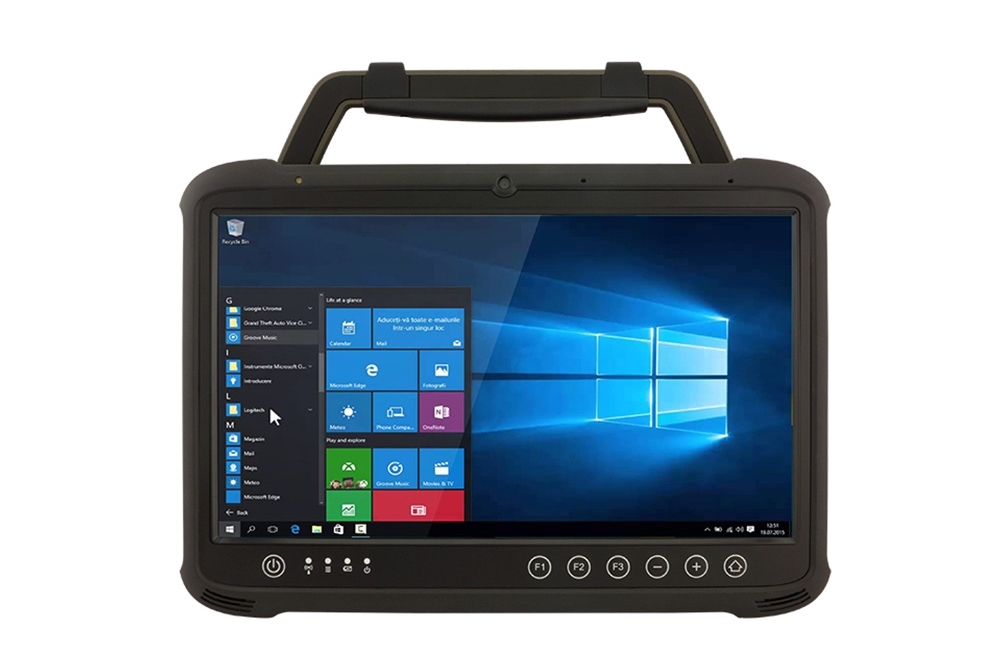

M133K 13.3 Rugged Tablet PC

  • 13.3-inch Tablet with 1920 x 1080 Wide Viewing-Angle Display
  • Intel® Core™ i5-7200U Kaby Lake processor
  • Magnesium Alloy Housing with All-Around Elastomeric Rubber
  • Fanless Thermal Design
  • MIL-STD-810G Certified
  • IP65 Waterproof and Dust Proof
  • Optional Hot-Swappable User-Replaceable Battery
  • Rugged design: Anti-shock, Vibration, and Transit Drop
  • SOTI MobiControl compatible
  • With optical bonding to increase optical clarity and readability.
  • Optional 600 nit high brightness panel for sunlight readability

Display Specifications

Size 13.3-inch
Brightness 350 nits with Optical Bonding (Optional 600 nits)
Resolution 1920x1080
Contrast Ratio 800:1
Touch Multi-touch Projected Capactive with Glove/Rain/Stylus Modes, Active Stylus support
Sensors Light sensor/ G sensor / Gyro / E-compass
Viewing Angle 85/85/85/85

System Specification

Processor Intel® Core™ i5-7200U, 2.50 GHz (turbo up to 3.10 GHz)
Memory 4GB SODIMM DDR4-2400 (up to 16GB)
Storage Storage 1: 1 x 128GB M.2 SSD (up to 512GB)
Storage 2: Optional M.2 SSD (up to 512GB)
Audio 1 x Built-in Digital Mic, 2 x 1W Speaker

Wireless Communication

WLAN 802.11 a/b/g/n/ac
Bluetooth Bluetooth 5.0
WWAN Optional 4G/ LTE or 3G

I/O Connectors

Audio 1 x Built-in Mic, 2 x 1W Speaker
External I/O 1 x HDMI, 1 x RJ45-10/100/1000 Mbps LAN
1 x RS232 Serial Com Port
2 x USB 3.0, 2 x USB 2.0
1 x USB 3.1 Type-C
1 x Headphone Combo Jack
1 x Power (DC in)
1 x 19-pin Docking Connector
1 x Micro SD Card Slot
1 x Service Window (Access to 1 x mini PCI-e WWAN card)
1 x Optional Expansion Window (Smart Card / Barcode Reader)

In front Control

LED indicator Power / Battery / RF / SSD

Mechanical and Environment

Dimensions (W x L x H) 338.2 x 240 x 30 mm (13.3 x 9.4 x 1.18 inches)
Net Weight (kg) 2.4 kg (2.8 kg with kickstand)
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
IP Proof IP65
Operating Humidity 30% to 80% RH, non-condensing
Certifications CE, FCC, IC, UL
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure
Drop MIL-STD-810G Method 516.6, 4 ft to concrete
ESD 12kV contact /12kV air
Housing Rear Magnesium Alloy Die-Casting design Fanless thermal design

Power Management

Power Input 19V DC
Battery 7.4V, 10280 mAh (typ.) Li-Polymer Battery (2S2P) Optional Hot-Swappable Battery
Adapter 100-240V, 50-60Hz, 19V DC
Battery Operating Time 11 Hours(BAPCo TabletMark v3)

Product Specification

OS Windows 10 IoT Enterprise
RFID Optional HF RFID 13.56 MHz reader
Barcode Optional 1D/2D barcoder reader
Camera 5MP auto-focus camera with LED flash at rear
2MP camera at front


Security Password security for user and hard disk lock
Kensington lock slot
Trusted platform module (TPM) V2.0
Computrace® theft protection support
Mobile Device Management SOTI MobiControl compatible
  • *The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
  • *With BatteryMon Test Program under Power Saving Mode.
