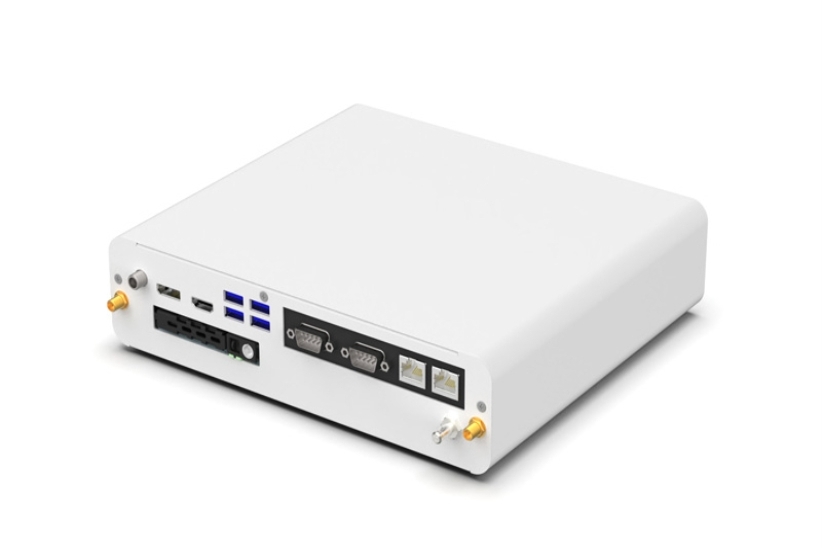

mBOX100

Medical Grade Fanless Slim System with 8th Gen Intel® Core™ i7/i5 & Celeron® Processor for Smart Healthcare Applications

Features

  • 8th gen Intel® Core™ i7/i5 & Celeron® processor (Whiskey Lake-U), TDP 15W
  • 2 DDR4-2400 SO-DIMM for up to 64GB memory
  • 1 HDMI and 1 DisplayPort with 4K UHD supported
  • 2 COM & 2 GbE LAN support 4kV isolation
  • Swappable 2.5" SATAIII SSD tray with security lock
  • Antimicrobial coating chassis (optional)
CPU
  • Intel® Core™ i7-8665UE/i5-8365UE processor (Whiskey Lake-U) with TDP 15W
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin DDR4-2666 non-ECC SO-DIMM, up to 64GB
Graphics
  • Intel® UHD Graphics 620
  • Supports Gfx - DX12.0, OCL2.0, OGL4.3
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 3.1
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT & Intel® i219-LM)
Display
  • 1 x HDMI 1.4
  • 1 x DisplayPort 1.2
Storage
  • 1 x 2.5" SATAIII SSD
  • 1 x M.2 Key M 2280 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCIe signal)
Others
  • 1 x Power on/off button
  • 1 x DC power input connector
  • 2 x SMA-type antenna connector
TPM
  • TPM 2.0
  •
Power Supply
  • 12-24V DC in
Watchdog Timer
  • 65535 levels, 1 to 65535 sec.
Operating Temperature
  • 0°C to 40°C (-40°F to 158°F)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration Endurance
  • 3Grms STD, random, 5 to 500 Hz, 1 hr/axis
Dimensions (W x D x H)
  • 250 x 220 x 60mm (9.8" x 8.66" x 2.36")
Weight (net/gross)
  • 3 kg
EOS Support
  • Win 10 IoT, Linux
Certifications
  • CE, FCC
  • IEC-60601 Compliance
  • mBOX100
  • Medical Grade Fanless Slim System with 8th Gen Intel® Core™ i7/i5 & Celeron® Processor, HDMI 1.4, DisplayPort 1.2, 2 COM, 4 USB 3.1 and 2 GbE LAN
  • DDDR4 SO-DIMM
  • 8GB to 32GB
  • 2.5” SATA SSD
  • 128GB or above
  • M.2 NVMe SSD
  • 100GB or above
  • WLAN Kit
  • Wi-Fi module & antenna
  • Power Adapter
  • 12V, 65W adapter (Medical Grade)
