mBOX600

CPU	Intel® Xeon® & 8th gen Intel® Core™ i7/i5/i3 processors
Chipset	Intel® CM246/QM370/HM370
System Memory	2 x 260-pin DDR4-2666 non-ECC SO-DIMM, up to 64GB
Graphics	Intel® UHD Graphics 630 Supports Gfx - DX12.0, OCL2.0, OGL4.3/4.4
BIOS	AMI
COM	2 x RS-232/422/485
USB	4 x USB 3.1
Ethernet	2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT & Intel® i219-LM)
Display	1 x HDMI 1.4 2 x DisplayPort 1.2
Storage	1 x 2.5" SATAIII SSD 1 x M.2 Key M 2280 NVMe SSD slot
Expansion	1 x Full-size PCI Express Mini Card slot (USB + PCIe signal) 1 x Half-size PCI Express x16 Gen3 slot
Others	1 x Power on/off button 1 x DC power input connector 2 x SMA-type antenna connector
TPM	TPM 2.0
Power Supply	12-24V DC-in
Watchdog Timer	65535 levels, 1 to 65535 sec.
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	10% - 90%, non-condensing
Vibration Endurance	3Grms STD, random, 5 to 500 Hz, 1 hr/axis
Dimensions (W x D x H)	250 x 240 x 90 mm (9.8" x 9.44" x 3.54")
Weight (net/gross)	4 kg
EOS Support	Win 10 IoT, Linux
Certifications	CE, FCC, UL IEC-60601 Compliance

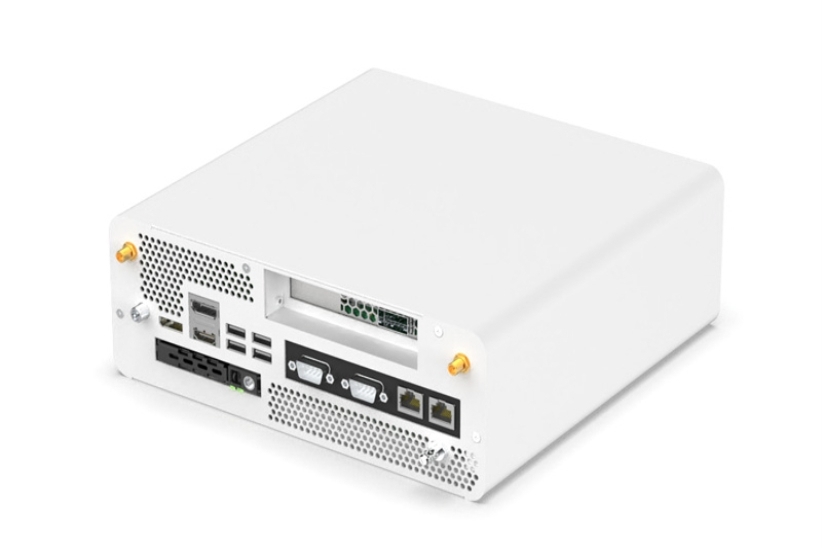

mBOX600
Medical Grade Slim System with Intel® Xeon® & 8th Gen Intel® i7/i5/i3 Processors, HDMI 1.4, DisplayPort 1.2, 2 COM, 4 USB 3.1 and 2 GbE LAN
DDDR4 SO-DIMM
8GB to 64GB
2.5” SATA SSD
128GB or above
M.2 NVMe SSD
100GB or above
WLAN Kit
Wi-Fi module & antenna
Power Adapter
24V 150W adapter (Medical Grade)
