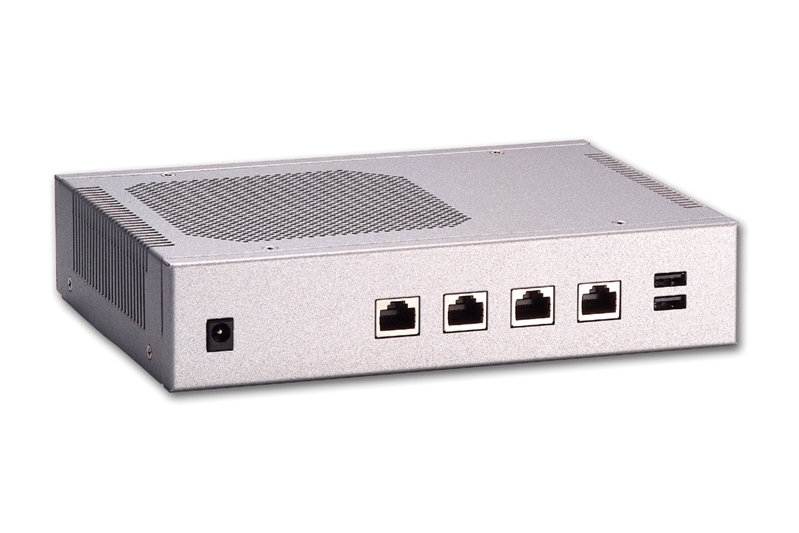

NA-100

Desktop Fanless Network Appliance Platform with AMD Geode LX800 Processor and 4 LANs

  • Ultra low power AMD Geode LX800 processor
  • Supports four 10/100Mbps Ethernet ports (Realtek 8100C)
  • Supports LAN bypass and BIOS redirected to COM port
  • Supports one 2.5" IDE HDD
  • Supports accelerated IPsec security engines and wireless module through MiniPCI
  • Suitable for VPN, UTM, network bandwidth controller, SSL/TLS, firewall and other embedded box applications

The NA-100 is a 1U desktop network security hardware platform for VPN, UTM, and other network security applications and embedded box solutions. It supports ultra low power and reasonable performance AMD LX800 CPU's with AMD Geode CS5536AD North Bridge and fanless operation. The system memory utilizes two SODIMM DDR memories for up to a maximum of 2GB. With other optional features such as the LAN by-pass function, the NA-100 can be controlled through WDT and GPIO pin definitions without downtime. For LAN solutions, it supports four Realtek 8100C Ethernet chips. The NA-100 is suitable for SOHO and entry network security appliance applications.

Form Factor
  • 1U desktop
CPU
  • AMD Geode LX800 onboard; LX600/ LX700 as option
Chipset
  • AMD Geode CS5536AD
System Memory
  • 2 x SO-DIMM DDR 333/400 up to 2 GB
BIOS
  • AMI
Ethernet
  • 4 x 10/100Mbps (Realtek 8100C)
LAN Bypass
  • 1 pair (optional)
LAN Module
  • N/A
Storage
  • 1 x 2.5" IDE HDD
  • 1 x CompactFlash™ type-II
Expansion
  • 1 x 32-bit/33MHz MiniPCI slot
I/O Interface
  • 1 x RS-232 DB9 connector
  • 2 x USB 2.0
  • 1 x DC-in power jack
Power Supply
  • 12V/5A
LCM Module
  • N/A
Operating Temperature
  • 0°C ~ +40°C (32°F ~ 104°F)
Dimensions
(H x W x D)
  • 44 x 210.2 x 151.2 mm (1.79" x 8.27" x 5.94")
Weight (net/gross)
  • 2.35 kg (5.18 lb)/2.61 kg (5.75 lb)
EOS Support
  • Linux Kernel
Certifications
  • FCC class B
  • CE class B
  • NA100-D4ER-500 (P/N- E26E100100)
  • Ultra low power fanless network appliance with AMD LX800 CPU, 4 10/100Mbps
  • CK9A100
  • Cable kit (P/N-88080000640E)
  • AX93300
  • PATA to SATA converter module card
