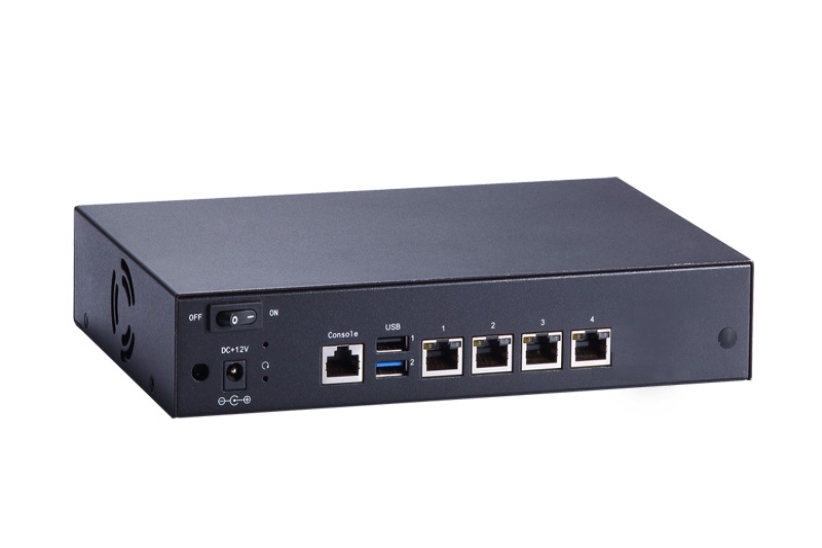

NA342

Desktop Network Appliance Platform with Intel® Celeron® Processor J1900 and 4 LAN for VPN, Network Bandwidth Controller

  • Intel® Celeron® processor J1900 (Bay Trail)
  • 1 DDR3L-1333 SO-DIMM for up to 8GB of memory
  • 4 GbE RJ-45 ports (Intel® i211)
  • Wi-Fi/3G/LTE through PCI Express Mini Card slot for optional
  • Suitable for VPN, network bandwidth controller and firewall applications

The IMB700 is powered by the latest dual LGA4189 socket 3rd Gen Intel® Xeon scalable processors (code name: Ice Lake-SP) with the Intel® C621A chipset. The IMB700 offers rich expandability with three PCIe x16 slots, three PCIe x8 slots and M.2 Key M 2280 interface with PCIe x4 signal for adding GPUs, capture cards, RAID cards, high-speed NVMe storage, etc. Six SATA-600 ports with integrated RAID 0/1/5/10 are available for reliable data storage and protection. For a wide range of I/Os, it has an internal USB dongle, six USB 3.1 Gen1 ports, seven USB 2.0 ports, one RS-232/422/485 port, two GbE LAN ports with Intel® Ethernet controller i210-AT, one VGA port, eight-channel programmable digital I/O port, one HD Codec audio, SMBus, and one PS/2 keyboard and mouse. Trusted Platform Module 2.0 (TPM 2.0) is available to ensure critical information security. Furthermore, it can operate under a wide temperature range from 0°C to +60°C for use in harsh environments. More features include watchdog timer and hardware monitoring functions. Featured with built-in AI and crypto acceleration functions as well as advanced security capabilities, the IMB700 is targeted at markets requiring accelerating performance, high security, high-performance computing for efficient machine and deep learning workloads.

Form Factor
  • 1U desktop
CPU
  • Intel® Celeron® processor J1900 (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1333 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 4 x 10/100/1000 Mbps (Intel® i211, optional 6 ports by request)
LAN Bypass
  • 2 pairs (optional)
LAN Module
  • N/A
Storage
  • 1 x 2.5" SATA HDD
  • 1 x Compact Flash™ type-II
Expansion
  • 1 x PCI Express Mini Card slot with USB interface
I/O Interface
  • 1 x RS-232 (RJ-type)
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 4 x RJ-45
Power Supply
  • 1 x 12V, 5A power adapter
LCM Module
  • N/A
TPM
  • Onboard TPM 1.2 (optional)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 231.9 x 152 mm (1.73” x 9.00” x 5.98”)
Weight (net/gross)
  • 2.5 kg (5.51 lb)/2.9 kg (6.39 lb)
EOS Support
  • Win7, WES7, Win8, WE8S, Linux
Certifications
  • FCC class B
  • CE class B
  • NA342-D4GI-1900-B-US w/o LBP (PN-E26E342103)
  • 1U desktop network appliance with Intel® Celeron® processor J1900 and 4 GbE LAN
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable
