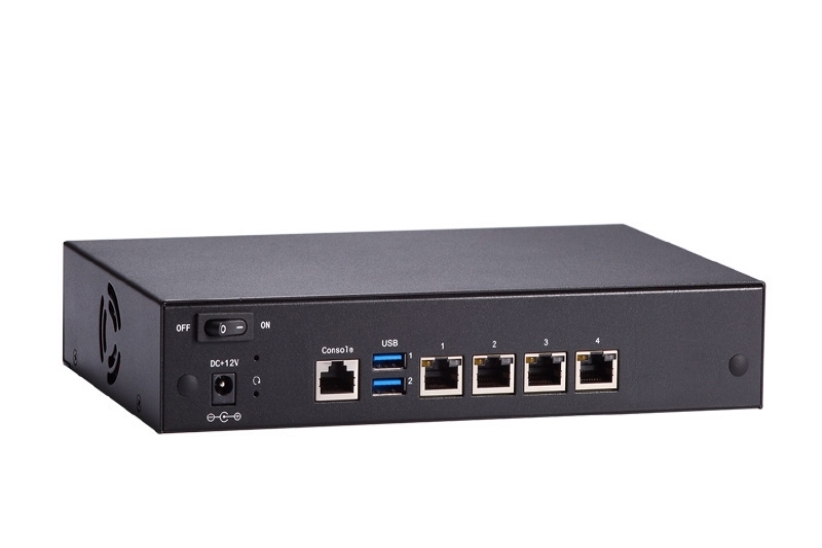

NA345

Desktop Network Appliance Platform with Intel® Celeron® N3350/J3455 up to 4 LAN for VPN, Network Bandwidth Controller an

  • Intel® Celeron® processor N3350/J3455 (Apollo Lake)
  • 1 DDR3L-1866 SO-DIMM for up to 8GB of memory
  • 4 GbE RJ-45 ports (Intel® i211)
  • 1 PCI Express Mini Card slot for mSATA
  • 2 PCI Express Mini Card slots for WiFi and LTE module
  • Suitable for VPN, network bandwidth controller and firewall applications
  • Intel® Celeron® processor N3350/J3455 (Apollo Lake)
  • 1 DDR3L-1866 SO-DIMM for up to 8GB of memory
  • 4 GbE RJ-45 ports (Intel® i211)
  • 1 PCI Express Mini Card slot for mSATA
  • 2 PCI Express Mini Card slots for WiFi and LTE module
  • Suitable for VPN, network bandwidth controller and firewall applications
Form Factor
  • 1U desktop
CPU
  • Intel® Celeron® processor N3350/J3455
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 4 x GbE RJ-45 (Intel® i211, 6 ports by request)
LAN Bypass
  • 2 pairs (optional)
LAN Module
  • N/A
Storage
  • 1 x 2.5" SATA 3 HDD
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot (SATA+USB)
  • 1 x Half-size PCI Express Mini Card slot (USB+PCIe)
  • 1 x Full-size PCI Express Mini Card slot (USB+PCIe)
  • 1 x Standard SIM Socket
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 4 x RJ-45
  • 1 x HDMI (optional)
Power Supply
  • 1 x 12V, 5A power adapter
LCM Module
  • N/A
TPM
  • Onboard TPM 1.2 (optional)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 231.9 x 152 mm (1.73" x 9.00" x 5.98")
Weight (net/gross)
  • 2.35 kg (5.18 lb)/2.61 kg (5.75 lb)
EOS Support
  • Win 10, Linux
Certifications
  • FCC class B
  • CE class B
  • NA345-D4GI-N3350-US w/o LBP (P/N-E26E345100)
  • 1U desktop network appliance with Intel® Celeron® processor N3350 and 4 GbE LAN
  • NA345-D4GI-J3455-US w/o LBP (P/N-E26E345107)
  • 1U desktop network appliance with Intel® Celeron® processor J3455 and 4 GbE LAN
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
