NA345E

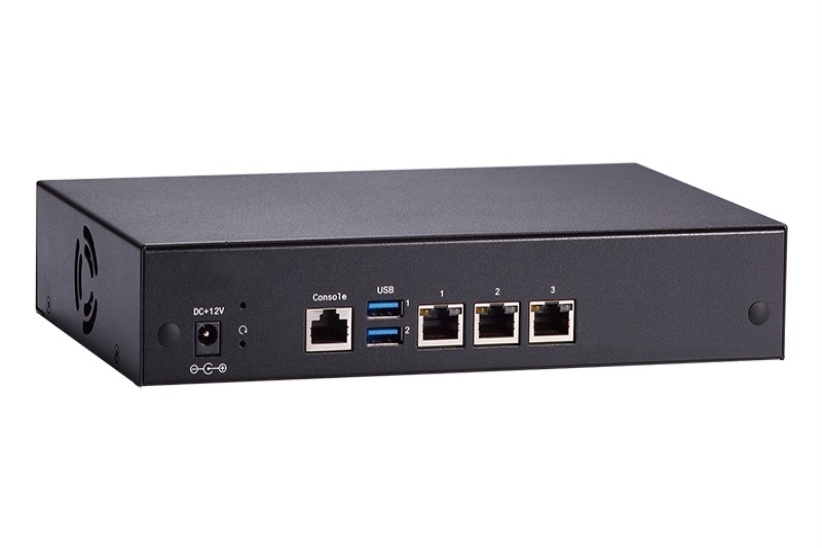

Fanless Desktop Network Appliance Platform with Intel® Celeron® Processor N3350 1.10 GHz and 3 GbE LANs

  • Intel® Celeron® processor N3350 (Apollo Lake)
  • One DDR3L-1866 SO-DIMM, up to 8GB memory
  • Three 10/100/1000 Mbps Ethernet ports (Intel® i211)
  • Suitable for VPN, network bandwidth controller and firewall applications

The fanless NA345E adopts the low-power consumption Intel® Celeron® processor N3350 (codename: Apollo Lake). It aims to provide small business and SOHO customers an energy-saving and cost-effective network appliance for solutions in VPN, content filtering, UTM, network security gateway, and firewall. The desktop NA345E supports one non-ECC DDR3L-1866 SO-DIMM socket providing system memory of up to 8GB; moreover, it offers one mSATA for storage. It is equipped with three 10/100/1000 Mbps LAN ports (Intel® i211 Ethernet controller). The network appliance platform also has two USB 3.0 ports and an RJ-type serial console port. The system features a watchdog timer for reliable operation. Additionally, it supports  Linux operating system.

Form Factor
  • 1U desktop
CPU
  • Intel® Celeron® processor N3350 (Apollo Lake) 1.10 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x SO-DIMM non-ECC DDR3L-1866, up to 8GB
BIOS
  • AMI
Ethernet
  • 3 x 10/100/1000 Mbps (Intel® i211)
LAN Bypass
  • N/A
LAN Module
  • N/A
Storage
  • 1 x mSATA
Expansion
  • N/A
I/O Interface
  • 1 x RS-232 (RJ-type)
  • 2 x USB 3.0
  • 3 x RJ-45
Power Supply
  • 1 x 12V, 5A power adapter
LCM Module
  • N/A
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 231.9 x 152 mm (1.73" x 9.00" x 5.98")
Weight (net/gross)
  • 2.35 kg (5.18 lb)/2.61 kg (5.75 lb)
EOS Support
  • Linux (OS installation from console only)
Certifications
  • FCC class B/CE class B
  • NA345E-D3GI-N3350-US w/o LBP (P/N-E26E345104)
  • 1U desktop network appliance with intel® Celeron® processor N3350 and 3 GbE LANs
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
