NA347

Fanless Ultra Compact Network Appliance with Intel® Celeron® Processor N3350 and up to 3 LAN for Entry Level SD-WAN, VPN

  • Intel® Celeron® processor N3350 (Apollo Lake)
  • 1 DDR3L-1866 SO-DIMM for up to 8GB of non-ECC memory
  • 3 GbE RJ-45 ports (Intel® i211)
  • 1 mini-PCIe slot for Wi-Fi or LTE module
  • M.2 Key B 2242
  • Small form factor with fanless and noiseless design
  • Suitable for SD-WAN, VPN and IoT security gateway applications

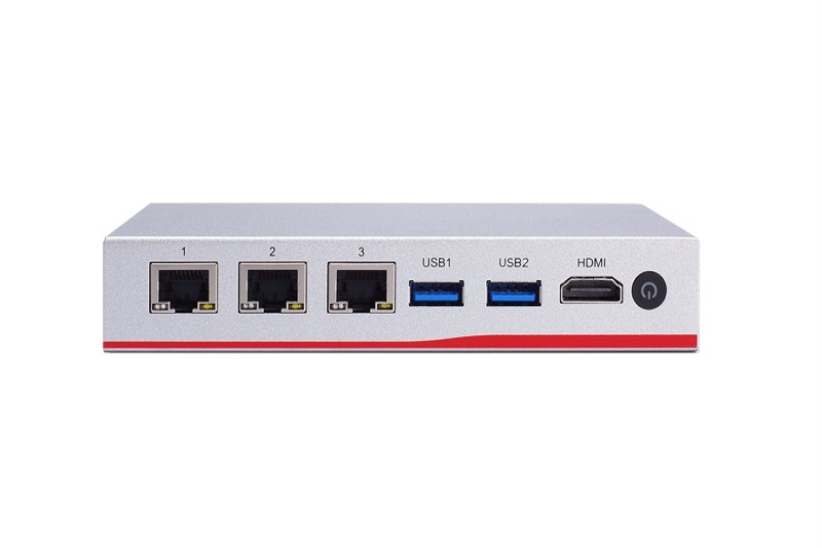

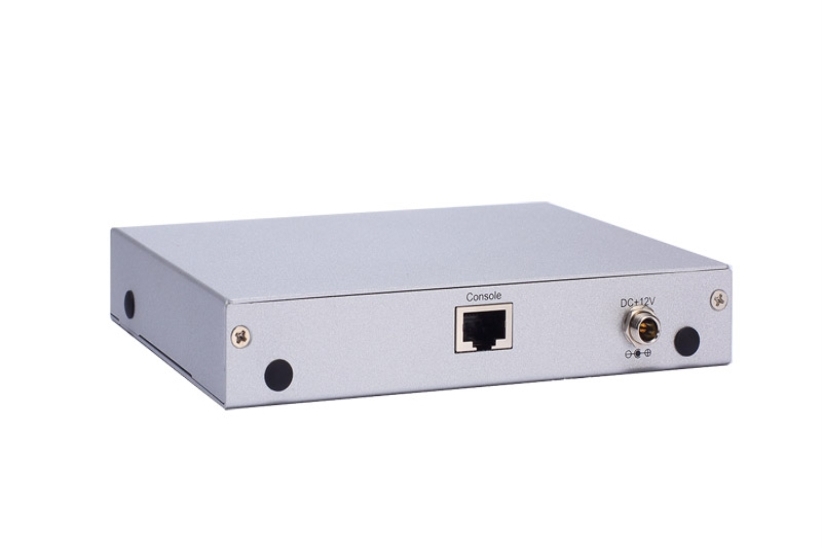

The NA347 is a 3-LAN fanless network appliance platform coming with ultra-slim size and low power consumption. This ultra-small desktop network appliance is powered by the Intel® Celeron® processor N3350. The NA347 is equipped with one DDR3L-1866 SO-DIMM slot with up to 8GB of non-ECC memory and also offers one M.2 2242 slot for extended storage. Under its small form factor, the network communication platform comes with three 10/100/1000 Mbps LAN ports using the Intel® i211 Ethernet controller. It also offers one full-size PCI Express Mini Card slot with PCIe/USB signal and one Nano SIM socket for expansion interfaces. Other I/O interfaces include one RS-232 (RJ-type), two USB 3.0 ports and one HDMI port. To ensure reliable operation, the NA346 supports a screw-type DC jack and a power button with LED, providing users with a more elegant and reliable product. It is compatible with Win 10 and Linux (Yocto project) operating systems.

Form Factor
  • Desktop, small form factor and fanless
CPU
  • Intel® Celeron® processor N3350, 2 Core, 1.10 GHz (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 3 x 10/100/1000 Mbps (Intel® i211)
LAN Bypass
  • Optional
LAN Module
  • N/A
Storage
  • 1 x M.2 2242 Key B slot (SATA)
Expansion
  • 1 x Full-size PCI Express Mini Card slot with PCIe/USB signal
  • 1 x Nano SIM Socket
I/O Interface
  • 1 x Console (RJ-type)
  • 3 x RJ-45
  • 2 x USB 3.0
  • 1 x HDMI
  • 1 x DC Jack (Screw type)
  • 1 x Power Button with LED
Power Supply
  • 12V, 3A power adapter
LCM Module
  • N/A
TPM
  • N/A
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 26 x 146 x 118.2 mm (1.24" x 5.57" x 4.65")
Weight (net/gross)
  • 0.284 kg (0.63 lb ) / 0.786 kg (1.73 lb)
EOS Support
  • Win 10, Linux (Yocto project)
Certifications
  • CE/FCC Class B
  • NA347-D3GI-N3350 (P/N-E26E347100)
  • SFF fanless network appliance with Intel® Celeron® processor N3350
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
  • 59902000030E
  • Power Cord - US
  • 59903000080E
  • Power Cord - EU
  • 59910050000E
  • Power Cord - JP
  • 59904000050E
  • Power Cord - UK
  • M.2 2242 SSD
  • DDR3L SO-DIMM
  • Wireless Module
  • Rackmount kit
  • Wall mount kit
