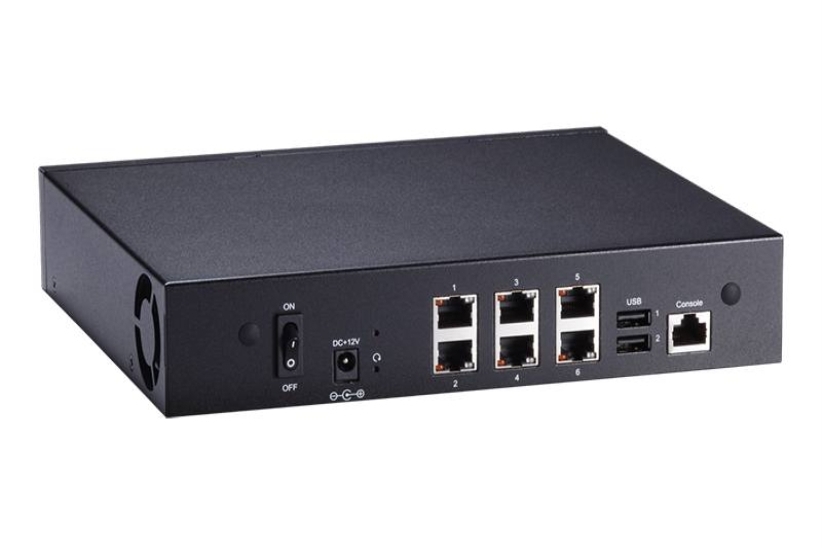

NA361

Desktop Network Appliance Platform with Intel® Atom® Processor C2358 and 6 LAN for VPN, Network Bandwidth Controller, Fi

  • Intel® Atom® processor C2358 (Rangeley)
  • 2 DDR3-1600 U-DIMM for up to 16GB of memory
  • 6 GbE RJ-45 ports (Intel® i354 & Intel® i210)
  • Wi-Fi/3G/LTE through PCI Express Mini Card for optional
  • Supports Intel® QuickAssist Technology
  • Supports Intel® Data Plane Development Kit (Intel® DPDK)
  • Suitable for VPN, network bandwidth controller, firewall and UTM applications

The NA361 1U-type compact network appliance platform supports the Intel® Atom™ dual-core processor C2358. Customers using the new NA361 also benefit from Intel® QuickAssist Technology hardware acceleration engine. The network system supports maximum up to 16 GB of DDR3 1600MHz UDIMM non-ECC memory or ECC memory, and features one 2.5” SATA HDD for storage. Six Gigabit Ethernet ports using Intel® i347 and i210 chipsets are integrated into this unit with two-pair LAN bypass function; one PCI Express Mini Card interface is available for wireless network connection. The durable network platform is an excellent choice for VPN, content filtering, UTM, network security gateway, and firewall in SOHO segment.

Form Factor
  • 1U desktop
CPU
  • Intel® Atom™ processor C2358 (Rangeley)
Chipset
  • SoC integrated
System Memory
  • 2 x DDR3-1600 U-DIMM, up to 16GB non-buffer non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 6 x GbE RJ-45 (Intel® i354 & Intel® i210)
  • 4 x GbE RJ-45 + 2 x GbE SFP (optional
LAN Bypass
  • 2 pairs (optional)
LAN Module
  • N/A
Storage
  • 1 x 2.5" SATA HDD
  • 1 x CompactFlash™ type-II
  • 1 x mSATA (optional)
  • 1 x CFast™ (optional)
Expansion
  • 1 x PCI Express Mini Card slot (USB+PCIe)
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 6 x RJ-45
Power Supply
  • 1 x 12V, 5A power adapter
LCM Module
  • N/A
TPM
  • TPM 1.2 module (optional)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 231 x 197 mm (1.73” x 9.09” x 7.76")
Weight (net/gross)
  • 2.35 kg (5.18 lb)/2.61 kg (5.75 lb)
EOS Support
  • Yocto, Linux
Certifications
  • FCC class B
  • CE class B
  • NA361-D6GI-2358-US (P/N-E26E361100)
  • 1U compact network appliance with Intel® Atom® processor C2358 and 6 GbE LAN
  • NA361-D6GI-2358-US w/ LBP (P/N-E26E361101)
  • 1U compact network appliance with Intel® Atom® processor C2358, 6 GbE LAN and LAN Bypass
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
