NA362R

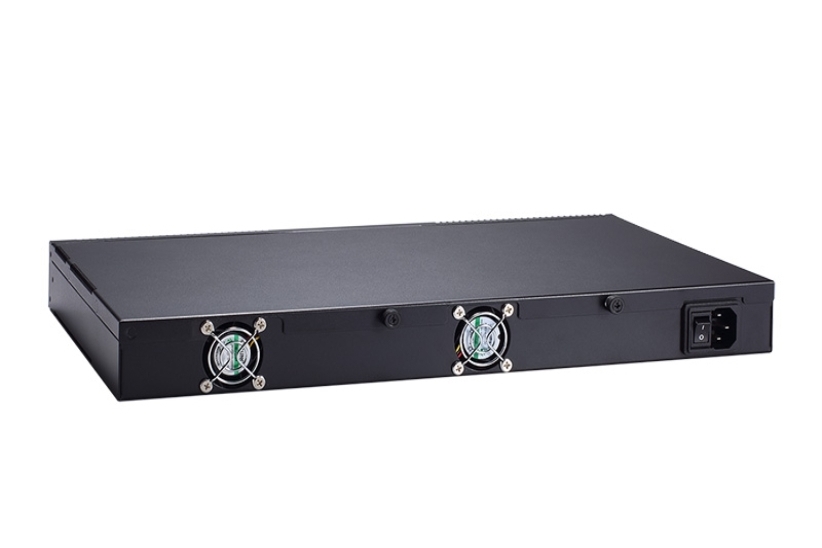

1U Rackmount Network Appliance Platform with Intel® Atom® Processor C3558/C3758 and up to 10 LAN

  • Intel® Atom® processor C3558/C3758 (Denverton)
  • 4 DDR4 R-DIMM/U-DIMM for up to 128GB of memory
  • 6 1GbE RJ45 and 4 10GbE SFP+ ports
  • Supports Intel® QuickAssist Technology
  • Supports Intel® Data Plane Development Kit (Intel® DPDK)
  • Suitable for VPN, network bandwidth controller, firewall and UTM applications

The NA362R is powered by the Intel® Atom™ processor C3558/C3758 (Codename: Denverton). The low power 1U network appliance comes with six 10/100/1000 Mbps LAN ports and two or four 10 GbE SFP+ fiber ports. It is equipped with one pair latch-type LAN Bypass function for fail-over option as well as featuring BIOS console redirection. Furthermore, it supports the Intel® QuickAssist Technology which accelerates data processing and compresses cryptographic workloads. The network communication appliance also features the Intel® Data Plane Development Kit, which greatly boosts packet processing performance and throughput to improve data plane performance.The NA362R comes with four DDR4 R-DIMM/U-DIMM sockets that can provide system memory of up to 128GB and support both ECC and non-ECC memory types. It comes equipped with two 2.5" SATA3 HDD and one mSATA for sufficient storage. In addition to six 10/100/1000 Mbps LAN ports (Intel® i210 Ethernet controller), it also has options of two or four 10 GbE SFP+ fiber ports for high bandwidth and long-distance communications. I/O options also include two USB 2.0 ports and a serial console port. To ensure reliable operation, the 10-port network platform supports watchdog timer. Moreover, it also supports mainstream Yocto and Linux.

Form Factor
  • 1U rackmount
CPU
  • Intel® Atom® processor C3558/C3758 (Denverton)
Chipset
  • SoC integrated
System Memory
  • 4 x DDR4 R-DIMM/U-DIMM. up to 128GB non-buffer non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 6 x GbE RJ-45 (Intel® i210)
  • 2 x 10GbE SFP+ (C3558)/4 x 10GbE SFP+ (C3758)
LAN Bypass
  • LAN Bypass function through latch relay (one pair)
LAN Module
  • N/A
Storage
  • 2 x 2.5" SATA3 HDD
  • 1 x mSATA
Expansion
  • N/A
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 6 x RJ-45 + 2 x SFP+ (C3558); 4 x SFP+ (C3758)
Power Supply
  • 120W open frame
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions
(H x W x D)
  • 44 x 430 x 250 mm (1.73" x 16.93" x 9.84")
Weight (net/gross)
  • 3.5 kg (7 lb)/4.5 kg (9 lb)
OS
  • Yocto, Linux
Certifications
  • CE/FCC Class B
Others
  • Onboard TPM 1.2/2.0 (optional)
  • NA362R-R8MI-C3558-US (P/N-E26E362103)
  • 1U rackmount network appliance with Intel® Atom® processor C3558, 6 GbE LAN and 2 SFP+ ports
  • NA362R-RAMI-C3758-US (P/N-E26E362104)
  • 1U rackmount network appliance with Intel® Atom® processor C3758, 6 GbE LAN and 4 SFP+ ports
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
