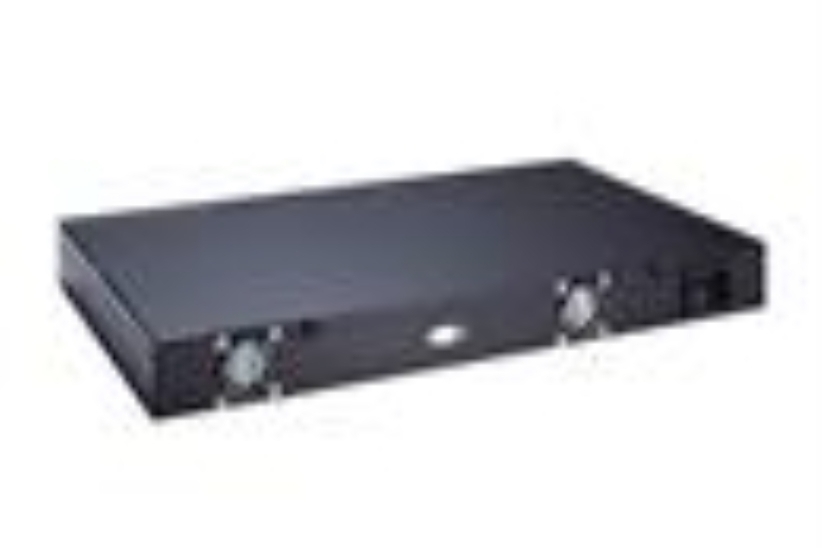

NA363R

1U Rackmount Network Appliance Platform with Intel® Atom® Processor C3558/C3758 and up to 14 LAN

  • Intel® Atom® processor C3558/C3758 (Denverton)
  • 4 DDR4 R-DIMM/U-DIMM for up to 128GB of memory
  • 6 GbE RJ-45 and 1 expandable LAN module support
  • Supports Intel® QuickAssist Technology
  • Supports Intel® Data Plane Development kit (Intel® DPDK)
  • Suitable for VPN, network bandwidth controller, firewall and UTM applications

 The NA363R is a reliable 1U rackmount network appliance platform offering Intel® QuickAssist technology and high processing performance through the Intel® Atom® processor C3558/C3758 (Denverton). It comes with six 10/100/1000 Mbps LAN ports using Intel® i210 Ethernet controller and one expandable LAN module slot for a maximum of fourteen LAN ports. It features two pairs of latch-type LAN bypass functions to protect important communications during power outages as well as BIOS console redirection for efficient management. The network security appliance provides high security and reliability with power-efficient for VPN, network bandwidth controller, firewall and UTM applications.

Form Factor
  • 1U rackmount
CPU
  • Intel® Atom® processor C3558/C3758 (Denverton)
Chipset
  • SoC Integrated
System Memory
  • 4 x DDR4 R-DIMM/U-DIMM, up to 128GB memory
BIOS
  • AMI
Ethernet
  • 6 x GbE RJ-45 (Intel® i210)
  • 1 x LAN module (optional), max. up to 14 LAN
LAN Bypass
  • One pair LAN Bypass function through latch relay
  • Two pairs LAN Bypass (optional)
LAN Module
  • 1 x LAN module through AX98614 (C3758 only)
Storage
  • 2 x 2.5" SATA3 HDD
  • 1 x mSATA
Expansion
  • N/A
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 6 x RJ-45
  • 1 x VGA (optional)
Power Supply
  • 120W open frame
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions
(H x W x D)
  • 44 x 430 x 251 mm (1.73’’ x 16.93” x 9.88'')
Weight (net/gross)
  • 3.5 kg (7 lb)/4.5 kg (9 lb)
OS
  • Yocto, Linux
Certifications
  • CE/FCC Class A
Others
  • Onboard TPM 2.0 (optional)
  • NA363R-R6GI-C3558-US w/1 LBP (P/N-E26E363100)
  • 1U rackmount network appliance platform with Intel® Atom® processor C3558 and 6 GbE LAN
  • NA363R-R6GI-C3758-US w/1 LBP (P/N-E26E363101)
  • 1U rackmount network appliance platform with Intel® Atom® processor C3758 and 6 GbE LAN
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
