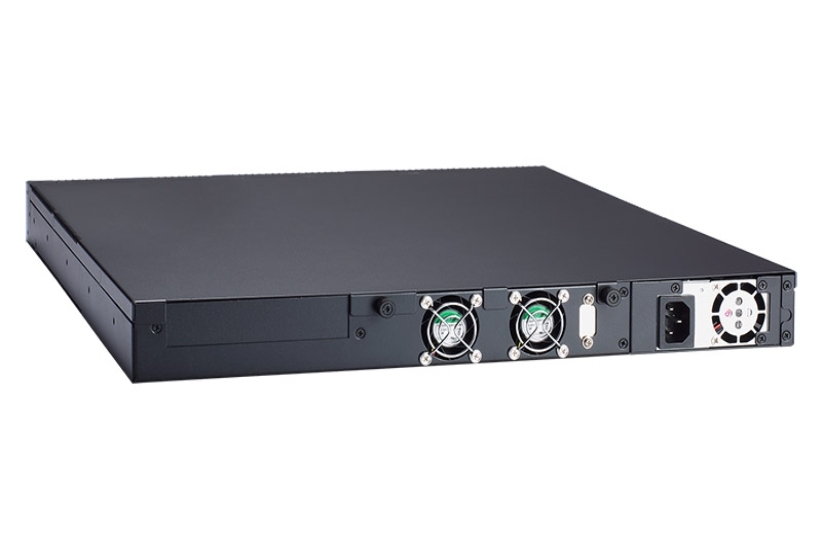

NA590

1U Rackmount Network Appliance Platform with LGA1151 Socket Intel® Core™/Xeon® E-2200 Processor, Intel® C246/H310 and up

  • LGA1151 socket 9th/8th Intel® Core™ i7/i5/i3 & Xeon® E-2200 processor (Coffee Lake/Coffee Lake Refresh)
  • 4 DDR4-2666 U-DIMM for up to 128GB of memory
  • Max. up to 26 LAN ports
  • 2 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
  • Supports 1U redundant power supply for optional
  • Supports IPMI for optional
  • Suitable for network security, cloud computing and data centers applications

The NA590 offers high processing performance through the LGA1151 socket Intel® Xeon® E-2200 or 9th/8th generation Intel® Core™ processors and supports both Intel® C246 and Intel® H310 chipsets. It comes with eight Gigabit Ethernet ports and two expandable LAN modules supporting 1GbE/10GbE/Fiber/Copper/Bypass with a maximum of twenty-six LAN ports. The NA590 comes with an option for two or four DDR4-2400 U-DIMM sockets with 128GB or 64GB of system memory. The standard configuration has eight Gigabit Ethernet ports using the Intel® i210 Ethernet controller. To ensure reliability, the SMB network appliance platform has two pairs of latch-type LAN bypass functions for fail-over options as well as featuring BIOS console redirection. The NA590 can integrate up to twenty-six Gigabit Ethernet ports to meet system developers' application-specific needs. Axiomtek's reliable yet flexible network appliance platform is particularly well suited to various applications such as VPN, firewall and security applications, network bandwidth controller, WAN accelerator and surveillance system.

Form Factor
  • 1U rackmount
CPU
  • LGA1151 socket 9th/8th Intel® Core™ i7/i5/i3 & Xeon® E-2200 processor (Coffee Lake/Coffee Lake refresh)
Chipset
  • Intel® C246/H310
System Memory
  • C246: 4 x DDR4-2666 U-DIMM, up to 128GB non-buffer non-ECC/ECC memory
  • H310: 2 x DDR4-2666 U-DIMM, up to 64GB non-buffer non-ECC memory
BIOS
  • AMI
Ethernet
  • C246:
  • 8 x GbE RJ45 (Intel® i210)
  • 10 x GbE RJ-45 (by project)
  • 2 x LAN module (optional), max. up to 26 LANs
  • H310:
  • 6 x GbE RJ-45 (Intel® i210)
  • 1 x LAN module (optional), max. up to 14 LANs
LAN Bypass
  • LAN Bypass function through latch relay (two pairs)
LAN Module
  • C246: 2 x LAN module (optional), max. up to 26 LANs
  • H310: 1 x LAN module (optional), max. up to 14 LANs
Storage
  • 2 x 2.5" SATA HDD
  • 1 x mSATA
  • 1 x M.2 2280 Key B slot (SATA) through AX98621 I/O card (C246 optional)
  • 1 x 3.5" SATA HDD (optional for 400W single power supply)
Expansion
  • 1 x PCIe x8 (Intel® C246 only) through AX96708 riser card (optional)
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 8 x RJ-45
  • 1 x VGA (pin header)
Power Supply
  • 300W single power supply
  • 400W 1U redundant power supply (by project)
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F) (300W single power supply)
  • 0°C to +40°C (+32°F to +104°F) (400W 1U redundant power supply)
Dimensions
(H x W x D)
  • 44 x 430 x 450 mm (1.73" x 16.93" x 17.7")
Weight (net/gross)
  • 6 kg (13.2 lb)/10 kg (22 lb)
OS
  • Linux
Certifications
  • CE Class A, FCC Class A,
Others
  • Onboard BMC AST2500, IPMI 2.0 for optional
  • Onboard TPM 2.0
  • NA590-R6GI-H310-US 9th w/o IPMI (P/N-E26E590109)
  • 1U rackmount appliance with LGA1151 socket Intel® Core™ processor, 6 GbE LAN, 2-pair LAN bypass and 1 expandable LAN module (optional)
  • NA590-R8GI-C246-US 9th w/o IPMI (P/N-E26E590108)
  • 1U rackmount appliance with LGA1151 socket Intel® Core™/Xeon® E-2200 processor, 8 GbE LAN, 2-pair LAN bypass and 2 expandable LAN modules (optional)
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
