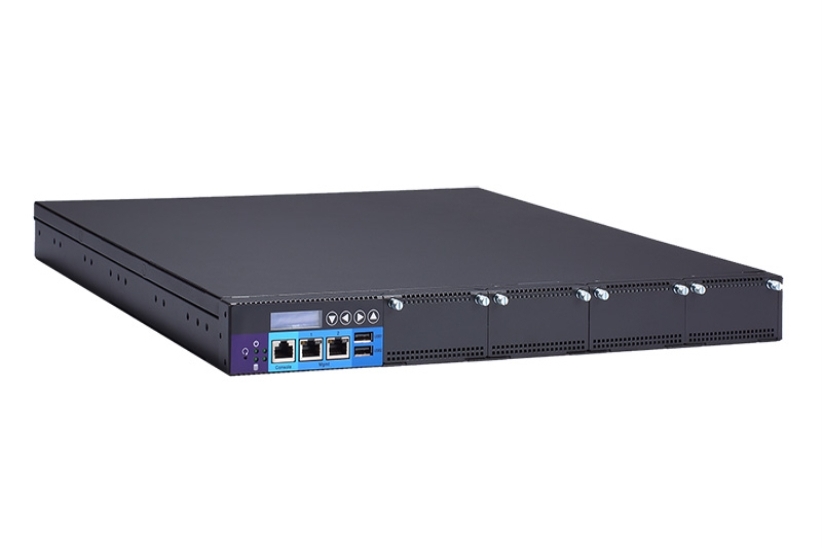

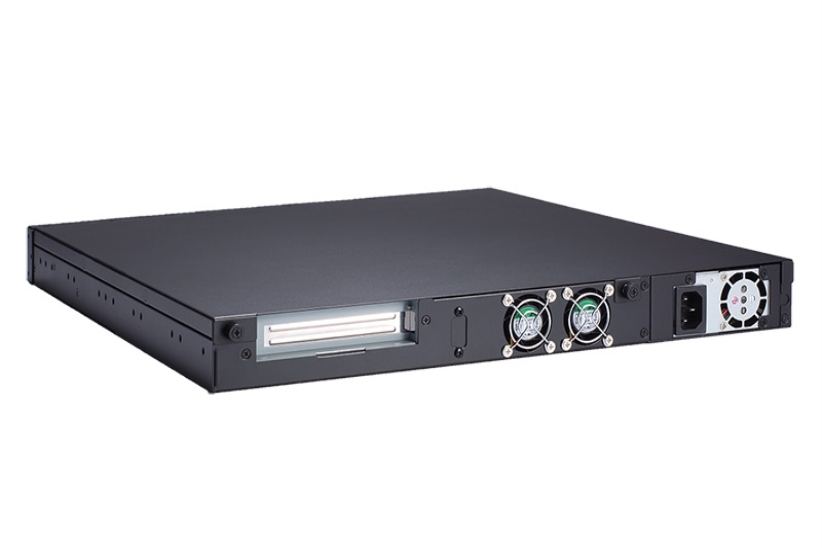

NA591

1U Rackmount Network Appliance Platform with LGA1151 Socket Intel® Xeon® E-2200/Core™ Processor, Intel® C246 and up to 3

  • LGA1151 socket 9th/8th Intel® Core™ i7/i5/i3 & Xeon® E-2200 processor (Coffee Lake/Coffee Lake Refresh)
  • 4 DDR4-2666 U-DIMM, up to 128GB memory
  • Max. up to 34 GbE LAN ports
  • 4 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass for optional
  • Supports 1U redundant power supply for optional
  • Supports IPMI/TPM for optional
  • Suitable for network security, cloud computing and data centers applications

The NA591 is an advanced 1U rackmount network appliance platform with a maximum of thirty-four LAN ports. This high-performance network appliance system is powered by the Intel® Xeon® E-2200 and 9th/8th gen Intel® Core™ i7/i5/i3 processors with the Intel® C246 chipset. The NA591 comes with four expandable LAN module slots that support 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/LAN Bypass interfaces, greatly enhancing its flexibility and scalability. This scalable 1U network appliance platform delivers security, stability and reliability for VPN, firewall, network bandwidth controller, WAN accelerator and surveillance system applications. This outstanding network security appliance features Intelligent Platform Management Interface (IPMI) to allow administrators to monitor system health and manage systems. Trusted Platform Module (TPM) is supported to bolster hardware-based data protection. Moreover, it features latch-type LAN Bypass functions for fail-over option as well as featuring BIOS console redirection. The NA591 is an ideal platform for network security, cloud computing and data centers applications.

Form Factor
  • 1U rackmount
CPU
  • LGA1151 socket 9th/8th Intel® Core™ i7/i5/i3 & Xeon® E-2200 processor (Coffee Lake/Coffee Lake Refresh)
Chipset
  • Intel® C246
System Memory
  • 4 x DDR4-2666 U-DIMM, up to 128GB non-buffer non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 2 x GbE RJ-45 (Intel® i210)
  • 4 x LAN module (optional), max. up to 34 LAN ports
LAN Bypass
  • LAN Bypass function through latch relay (depends on LAN modules)
LAN Module
  • 4 x LAN module (optional), max. up to 34 LAN ports
Storage
  • 2 x 2.5" SATA HDD
  • 1 x mSATA
  • 1 x M.2 2280 Key M slot (SATA)
  • 1 x 3.5" SATA HDD (optional for 400W ATX power supply only)
Expansion
  • 1 x PCIe x4 (optional)
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 2 x RJ-45
  • 1 x VGA
Power Supply
  • 400W ATX power supply
  • 400W 1U redundant power supply (optional)
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions
(H x W x D)
  • 44 x 430 x 500 mm (1.73" x 16.93" x 19.69")
Weight (net/gross)
  • 8.32 kg (18.34 lb)/12.76 kg (28.13 lb)
OS
  • Linux
Certifications
  • FCC class A
  • CE class A
Others
  • Onboard TPM 2.0
  • Onboard BMC AST2500, IPMI 2.0 for optional
  • NA591-R2GI-C246-US w/IPMI (P/N-E26E591100)
  • 1U rackmount appliance with LGA1151 socket Intel® Core™/Xeon® E-2200 processor, 2 GbE LAN, 4 expandable LAN modules(optional), and IPMI
  • NA591-R2GI-C246-US w/o IPMI (P/N-E26E591101)
  • 1U rackmount appliance with LGA1151 socket Intel® Core™/Xeon® E-2200 processor, 2 GbE LAN, and 4 expandable LAN modules (optional)
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
