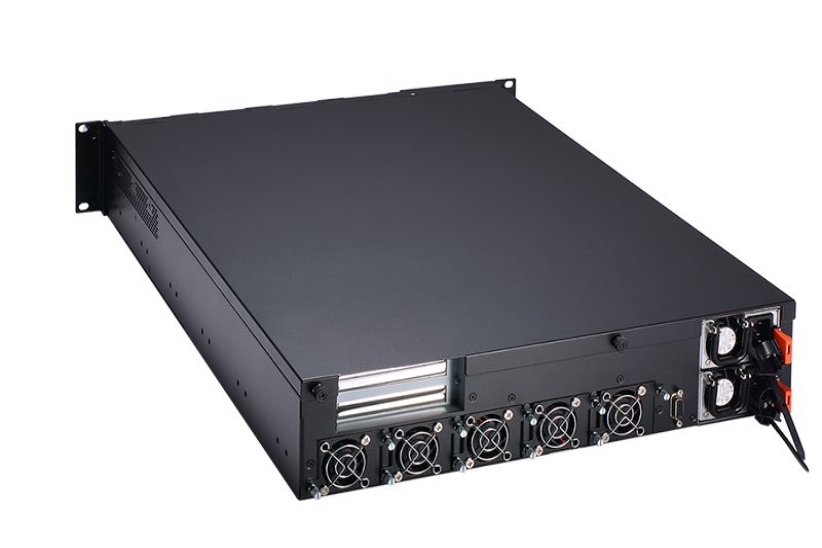

NA860

2U Rackmount Network Appliance Platform with Dual LGA3647 Socket Intel® Xeon® Scalable Processors, Intel® C621 (Purley)

  • Dual LGA3647 socket Intel® Xeon® Scalable processors
  • 12 DDR4-2400 R-DIMM for up to 384GB of memory
  • Max. up to 66 LAN ports
  • 8 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
  • Supports 2U redundant power supply
  • Supports IPMI (onboard) for optional
  • Supports onboard TPM
  • High computing power for SDN, NGFW, IDS, IPS and UTM applications

The NA860 offers a perfect mixture of performance, flexibility, and durability with server-class dual LGA3647 socket Intel® Xeon® Scalable processors and Intel® C621 chipset (codename: Purley). It is robust and highly reliable for use in a wide range of network applications such as SDN, NGFW, IDS, IPS, UTM, etc. Designed with flexibility in mind, the 2U rackmount network computing system is capable of managing numerous connected computers through an integration of up to eight expandable NIC modules which support a maximum of 66 LAN ports. These NIC modules feature support for copper, fiber, bypass, 1G/10G/40G Ethernet speeds, and hardware acceleration. The NA860 comes with twelve high-capacity DDR4-2400 R-DIMM slots with up to 384GB non-buffer non-ECC/ECC memory. Moreover, there are two hot-swappable 2.5-inch SATA HDD trays, one mSATA slot and one optional 3.5-inch SATA HDD tray for sufficient storage. Two PCIe x8 expansion slots are available for add-in cards.

Form Factor
  • 2U rackmount
CPU
  • Dual LGA3647 socket Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Chipset
  • Intel® C621
System Memory
  • 12 x DDR4-2400 R-DIMM, up to 384GB non-buffer non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 2 x GbE RJ-45 (Intel® i210)
  • Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports
  • Dual CPU: 8 x LAN module (optional), max. up to 66 LAN ports
LAN Bypass
  • LAN Bypass function through latch relay (depends on LAN modules)
LAN Module
  • Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports
  • Dual CPU: 8 x LAN module (optional), max. up to 66 LAN ports
Storage
  • 2 x 2.5" SATA HDD hot swappable
  • 1 x mSATA
Expansion
  • 2 x PCIe x8 through AX96709 riser card (optional)
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 2 x RJ-45
  • 1 x VGA
Power Supply
  • 800 W 2U redundant power supply
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 88 x 430 x 562 mm (3.46" x 16.92” x 22.12")
Weight (net/gross)
  • 12 kg (26.4 lb)/20 kg (44 lb)
OS
  • Linux
Certifications
  • FCC class A
  • CE class A
Others
  • Onboard TPM 2.0
  • Onboard BMC AST2500, IPMI 2.0 for optional
  • NA860-R2GI-C621-US (P/N-E26E860100)
  • 2U rackmount appliance with dual LGA3647 socket Intel® Xeon® Scalable processors and 2 GbE LAN
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
