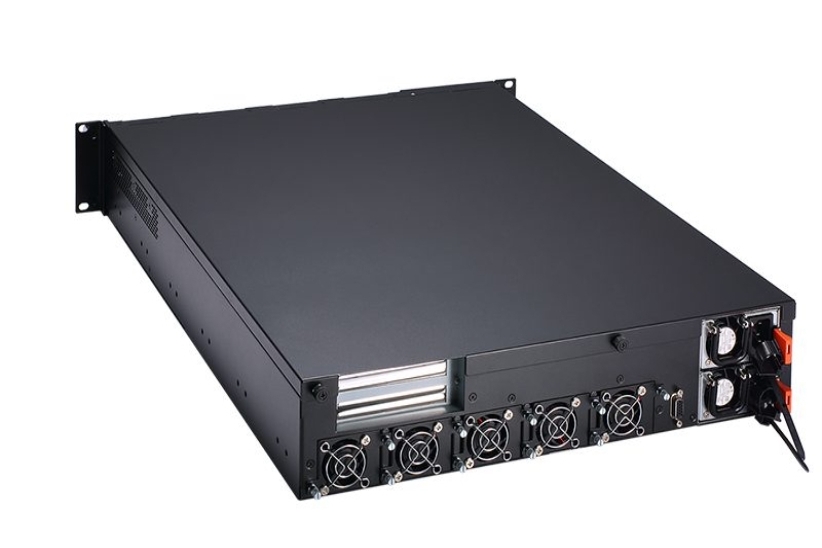

NA870

2U Rackmount Network Appliance Platform with Dual LGA4189 Socket Intel® Xeon® Scalable Processors, Intel® C621A /627A (I

  • Dual CPU sockets for 3rd gen Intel® Xeon® scalable processors with 8 to 40 powerful cores
  • 20 DDR4-3200 R-DIMM for up to 1280GB of memory
  • 8 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
  • Supports 100Gb Ethernet module with Intel® Ethernet controller E810 (AX93357/AX93358)
  • First PCIe gen 4.0 ready platform
  • Supports onboard IPMI for optional
  • Intel® Crypto Acceleration (C627A)

The NA870 is powered by the dual LGA4189 sockets 3rd Gen Intel® Xeon scalable processors (code name: Ice Lake-SP) with the Intel® C621A or C627A chipset. It can manage numerous connected computers through the integration of up to eight expandable NIC modules. The Intel® Ice lake processors with Intel® Crypto Acceleration technology ensure that the NA870 delivers a perfect mixture of performance, flexibility, and security for cloud-scale computing, AI, 5G networks, HPC workloads, and multi-access edge computing (MEC) applications. The dual-processor-based NA870 features two Gigabit Ethernet ports and eight expandable NIC modules with 1 GbE/10 GbE/Fiber/Copper/Bypass support for a maximum of sixty-six LAN ports. Moreover, the NA870 is equipped with twenty DDR4-3200 R-DIMM slots with a memory capacity of up to 1280GB. The server-grade network appliance platform also has two hot-swappable 2.5-inch SATA HDD trays at the front of the system and two M.2 Key M 2242/2280 supporting PCIe and SATA signal for storage expansions. Two PCIe x16 expansion slots are available for an add-in riser card.

Form Factor
  • 2U rackmount
CPU
  • Dual LGA4189 socket 3rd gen Intel® Xeon scalable processors (Ice Lake-SP)
Chipset
  • Intel® C621A in default /C627A by project
System Memory
  • 20 x DDR4-3200 R-DIMM, up to 1280GB non-buffer
BIOS
  • AMI
Ethernet
  • 2 x GbE RJ-45 (Intel® i210)
  • Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports
  • Dual CPU: 8 x LAN module (optional), max. up to 66 LAN ports
LAN Bypass
  • LAN Bypass function through latch relay (depends on LAN modules)
LAN Module
  • 4 x LAN module (optional), max. up to 34 LAN ports
  • 8 x LAN module (optional), max. up to 66 LAN ports
Storage
  • 2 x 2.5" SATA HDD hot-swappable
  • 1 x M.2 Key M 2242/2280 (PCIe)
  • 1 x M.2 Key M 2242/2280 (SATA)
Expansion
  • 2 x PCIe x16 (Optional, 1 slot for each CPU)through riser card
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 2 x RJ-45
  • 1 x VGA
Power Supply
  • 1600W 2U redundant power supply
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 88 x 430 x 663 mm (3.46" x 16.92” x 26.10'')
Weight (net/gross)
  • 12 kg (26.4 lb)/20 kg (44 lb)
OS
  • Linux
Certifications
  • CE/FCC Class A
Others
  • Onboard TPM 2.0
  • Onboard BMC AST2500, IPMI 2.0 for optional
  • NA870-R2GI-C621-US (P/N-E26E870100)
  • 2U rackmount appliance with dual LGA4189 socket Intel® Xeon® Scalable processors and 2 GbE LAN
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable for Cisco
