P1177S-881

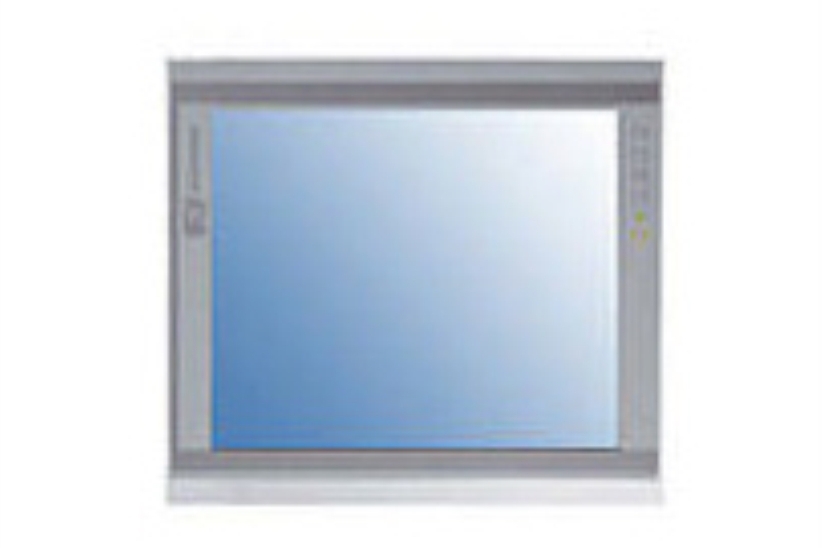

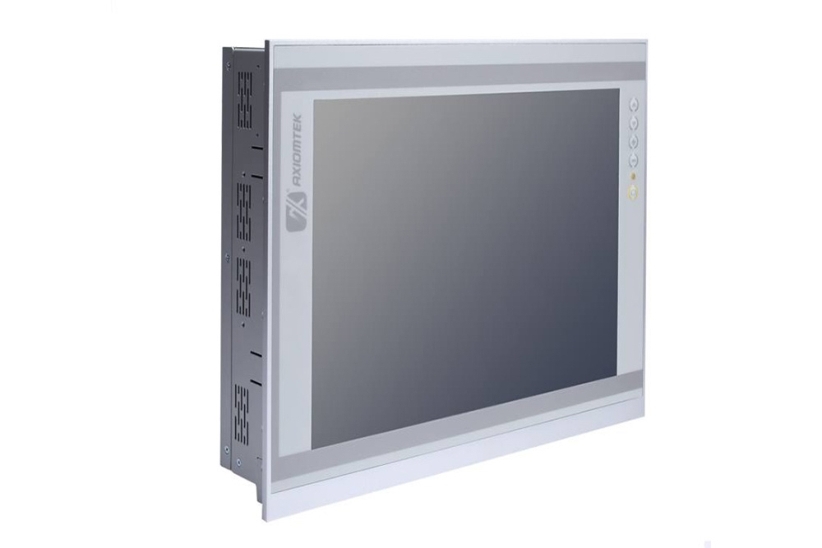

17" SXGA TFT Slim Industrial Touch Panel Computer with 4th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor

  • 17" SXGA TFT LCD display
  • LGA1150 socket 4th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor (Broadwell/Haswell)
  • Intel® H81 chipset
  • Less screw design for easy installation

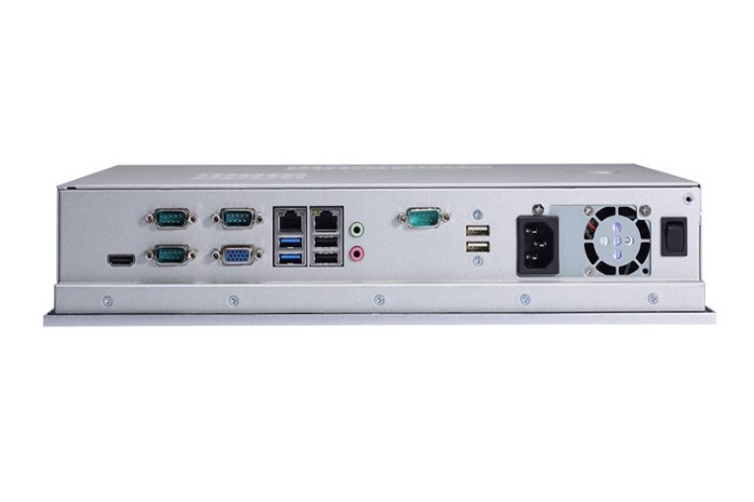

  • 2 USB 3.0, 4 USB 2.0 and 4 COM ports
  • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
  • Robust aluminum with IP65 compliant front bezel design
  • The best C/P ratio for HMI solution

The P1177S-881 is workstation-level industrial touch panel computer with rich I/O interface options. The high performance industrial touch panel PC is equipped with a 17-inch SXGA TFT LCD display and IP65 compliant front bezel. This rugged slim-type panel PC supports 5th/4th Generation Intel® Core™ i7/i5/i3 or Celeron® processors in an LGA1150 socket with the Intel® H81 Express chipset (Haswell platform). With dual-display capability, the P1177S-881 is a highly integrated and easy--to-use and maintain platform designed for factory automation, kiosks, and many other industrial automation, IoT & M2M applications. The entire system has a robust, slim aluminum casing with IP65/NEMA 4 compliant front bezel, which makes panel PC suitable to operate in many extreme and space-constricting environments. The newest Intel® Haswell touch panel PC offers workstation-level performance and features VGA, HDMI, Wi-Fi connectivity and built-in speakers, making it an excellent solution for both automation and kiosk fields. Additionally, the P1177S-881’s many useful features include a smart fan to automatically adjust the fan speed in response to the fluctuation of the temperature of the CPU for increased system reliability. For enhanced integration flexibility and expandability, this all-in-one panel PC supports four COM ports and two USB 3.0 ports.

LCD Panel
  • 17" SXGA TFT LCD
  • 250 nits
  • 1280 x 1024 pixels
CPU
  • LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
Chipset
  • Intel® H81
System Memory
  • 2 x 204-pin SO-DIMM DDR3, up to 16 GB
BIOS
  • AMI
COM
  • 3 x RS-232/422/485 with 5V & 12V
  • 1 x RS-232 with 5V & 12V
USB
  • 2 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i217-V & i210-AT)
Display
  • 1 x VGA
  • 1 x HDMI
Audio
  • 1 x Audio (Mic-in/Line-out)
Storage
  • 1 x 3.5" or 2 x 2.5" SATA HDD (7-9.5 mm height)
Expansion
  • N/A
Others
  • Built-in speakers
  • Optional Wi-Fi 802.11 b/g/n module
Touchscreen
  • 5-wire resistive type
Front Bezel
  • Aluminum with IP65/NEMA 4 rugged protection
Power Supply
  • 100 to 240 VAC, 200W
Power Comsumption
  • 142W
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Relative Humidity
  • 10% - 90% @ 40°C, non-considering
Vibration
  • 1.0G, 5 - 500Hz, random
Dimensions
(W x D x H)
  • 410 x 80 x 338 mm (16.14" x 3.15" x 13.3")
Weight (net/gross)
  • 6.6kg (14.55lb) / 10.6kg (23.37lb)
Certifications
  • CE
EOS
  • Windows®7/8.1, Windows® Embedded 7/8
Mounting
  • VESA mount
  • Wall mount
  • Rack mount
  • P1177S-881
  • 17" SXGA slim industrial touch panel computer with LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen
  • and 100 to 240 VAC
  • WiFi kit
  • 82211770060E
  • VESA & wall mount kit
  • 82211770070E
  • Rack mount kit
  • 82011750130E
  • 2 x 2.5" HDD bracket
  • E981604011
  • ATC10 (VESA arm clamp type)
  • E981604012
  • ATW10 (VESA arm wall mount)
  • E221177116
  • PPC HA741L black stand (L)
  • Power cord (EU/US/UK/JP)
