iNA100

DIN-Rail Industrial-grade Network Appliance Platform with Intel® Atom® x5-E3930 Processor and 4 LAN

  • DIN-rail design with fanless and noiseless design
  • Intel Atom® x5-E3930 processor (Apollo Lake)
  • One DDR3L-1866 SO-DIMM for up to 8GB of memory
  • Four GbE RJ-45 (Intel® i211)
  • PCI Express Mini Card slot for wireless module
  • Supports 2 COM, 4 GbE LAN, 2 USB 3.0 and 1 HDMI
  • Suitable ICS cybersecurity/critical infrastructure protection

The iNA100 is powered by the Intel® Atom® processor x5-E3930 (Apollo Lake) and has one DDR3L-1866 SO-DIMM slot for up to 8GB of non-ECC/ECC memory. In addition, this fanless IIoT edge computing platform has four 10/100/1000 Mbps LAN ports, sufficient storage and high expandability making it suitable for use in industrial cybersecurity, critical infrastructure protection and other OT security fields. It supports various forms of internet and SCADA connections, including Ethernet, Wi-Fi, 3G/LTE, and serials,” said Gordon Cho, a product manager of Network Computing Platform Division at Axiomtek.” The durable iNA100 is built to withstand harsh operating environments with a wide operating temperature range of -20°C to 60°C and vibration endurance for up to 2 Grms. In addition, it also supports Trusted Platform Module 2.0 (TPM 2.0) to securely store critical data.

Form Factor
  • DIN-rail, wallmount (optional)
CPU
  • Intel Atom® x5-E3930 processor (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM, up to 8GB non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 4 x GbE RJ-45 (Intel® i211)
Storage
  • 1 x Half-size mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
Expansion
  • 1 x Half-size PCI Express Mini Card slot with SATA/USB signal
  • 1 x Full-size PCI Express Mini Card slot with USB signal
I/O Interface
  • 2 x DB9 serial port (COM1 supports RS-232, COM2 supports RS-232/422/485)
  • 4 x RJ-45
  • 2 x USB 3.0
  • 1 x HDMI
  • 2 x Tact switch (1 x reset button, 1 x GPI button)
Power Supply

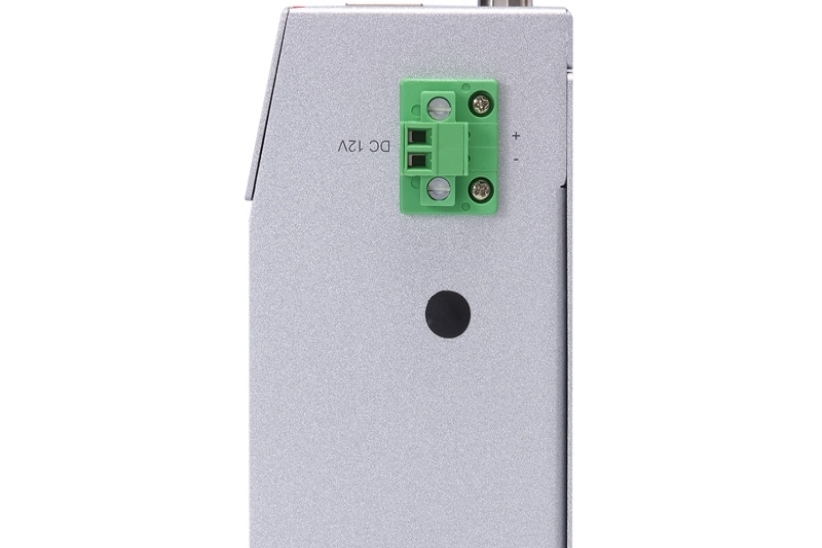

  • 1 x 2-pin terminal block 12V
Others
  • LAN Bypass (one pair)
Watchdog Timer
  • 255 stepping for system reset
Dimensions
(H x W x D)
  • 54 x 120 x 150 mm (2.13 x 4.72" x 5.9")
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F)
Weight (net/gross)
  • 1.1kg (2.43 lb)/2.0kg (4.41 lb)
OS
  • Win 10, Linux (Yocto project)
Certifications
  • FCC class B/CE class B
  • iNA100 (P/N-E27B100100)
  • DIN-rail industrial-grade network appliance platform with Intel Atom® x5-E3930 processor and 4 GbE LAN
  • 2.5" SATA SSD or HDD
  • DDR3L SO-DIMM
  • mSATA
  • Wall mount kits
  • Wi-Fi module
  • 3G/LTE module
  • 12V, 60W adapter
  • Power cord
