GOT3187WL-834-PCT

18.5" WXGA TFT Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (0°C to +40°C)

  • 18.5" WXGA projected capacitive multi-touch wide screen
  • Fanless design with Intel® Celeron® Processor J1900
  • 2.5" 7/9.5 mm SATA HDD & CFast™ or mSATA
  • 3G, WLAN module & antennas (optional)

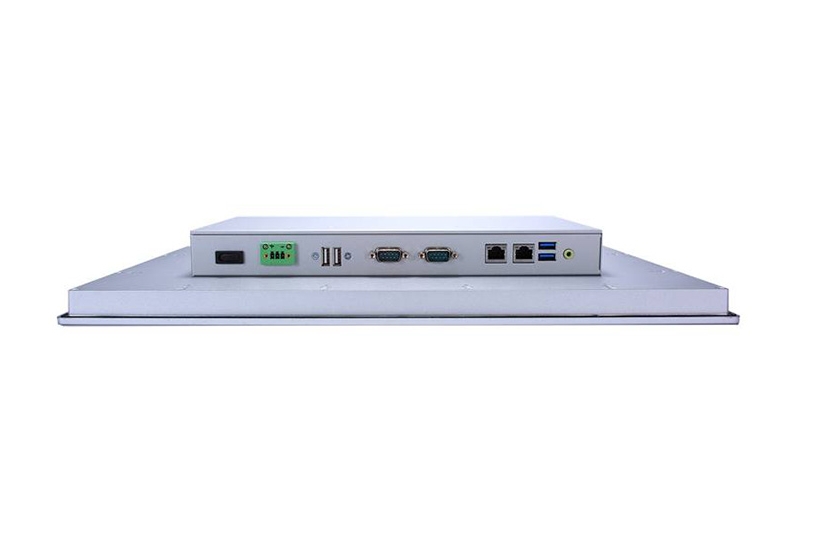

  • 2 GbE LANs, 2 USB 3.0, 2 USB 2.0 and 2 COM
  • IP65 aluminum front bezel

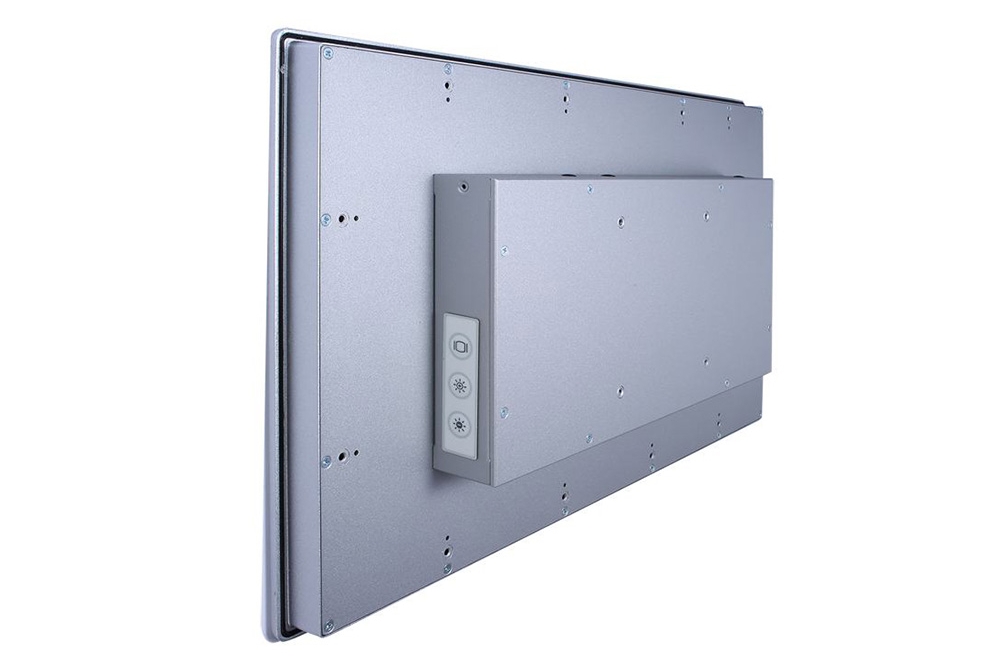

  • Supports panel mount and optional VESA arm/desktop stand/wall mount
  • 0°C to +40°C wide operating temperature range
  • Adjust RS-232/422/485 setting via BIOS

Datasheed (PDF)

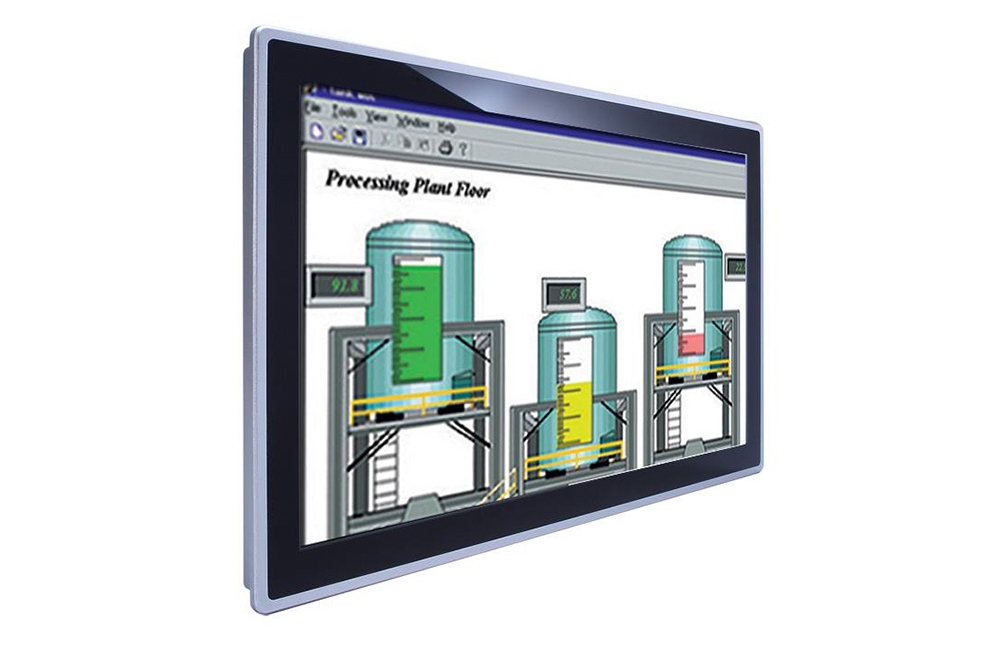

The GOT3187WL-834-PCT is an 18.5-inch fanless multi-touch panel computer for infotainment and light industry applications. The industrial grade widescreen touch panel PC adopts an 18.5" WXGA TFT LCD display with projected capacitive touchscreen and 250 nits high brightness. To provide excellent system performance, the all-in-one touch panel PC supports quad-core Intel® Celeron® processor J1900 (formally codename: Bay Trail) with low power consumption. The 7H surface hardness guarantees superior durability. Its multi-touch screen and slim and ultra-light weight design increase the system’s overall ease of use. This 18.5" Intel® Celeron®-based WXGA touch panel PC is suitable for self-services, digital signage, light factory automation, and many more.

LCD Panel
  • 18.5" WXGA TFT LCD
  • 250 nits
  • 1366 x 768
CPU
  • Intel® Celeron® processor J1900 2.0 GHz (Bay Trail-D)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i210-IT)
Display
  • N/A
Audio
  • Line-out
Storage
  • 1 x 2.5" SATA HDD (7-9.5 mm height)
  • 1 x CFast™ or 1 x mSATA
Expansion
  • 1 x full-size PCI Express Mini Card slot with mSATA
  • 1 x full-size PCI Express Mini Card slot with SIM
Others
  • 1 x switch for power on/off (ATX)
  • WLAN antennas
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • DC version: 12-36VDC
  • AC version: 12VDC 60W adapter
Power Comsumption
  • 48W
Watchdog Timer
  • 255 levels, 0~255 sec.
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +104°F)
Relative Humidity
  • 20% ~ 90% @ 40°C; non-condensing
Vibration
  • 1G, 10 ~ 500Hz, random for CFast™
Dimensions
(W x D x H)
  • 460.8 x 58.5 x 285 mm (18.11" x 2.3" x 11.22")
Weight (net/gross)
  • 5.8 kg (12.8 lb)/8.2 kg (18.1 lb)
Certifications
  • CE
EOS
  • Windows® 8.1, WE 8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • VESA arm
  • Desktop stand
  • Wall mount
  • GOT3187WL-834-PCT-J
  • 18.5" WXGA TFT fanless touch panel computer with Intel® Celeron® J1900 2.0 GHz quad core processor, projected capacitive multi-touch screen and AC-DC 12 VDC power adapter (screw type connector)
  • GOT3187WL-834-PCT-DC
  • 18.5" WXGA TFT fanless touch panel computer with Intel® Celeron® J1900 2.0 GHz quad core processor, projected capacitive multi-touch screen and 12 ~ 36 VDC terminal block connector
  • Wi-Fi
  • 82231770050E
  • GOT3177T-834 wall mount kit
  • 50906D24000E
  • Adaptor 24V/120W, wire only, FSP120-AAAN3 (for DC
