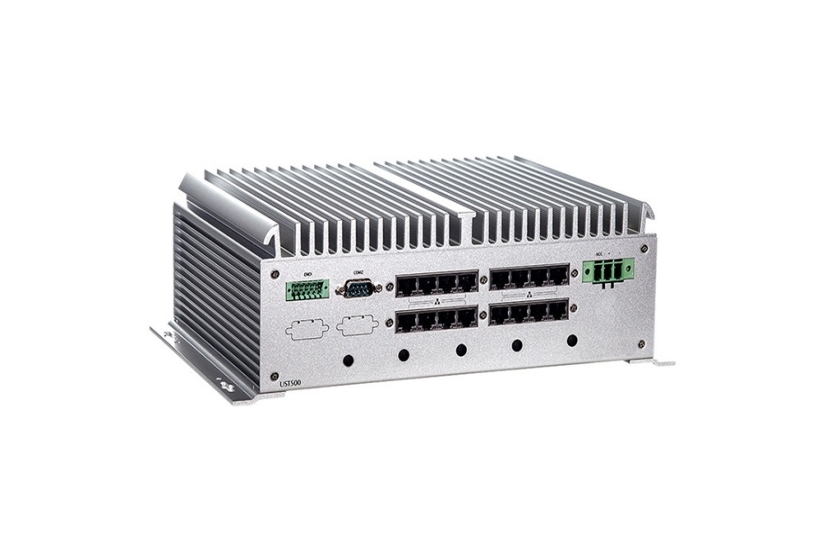

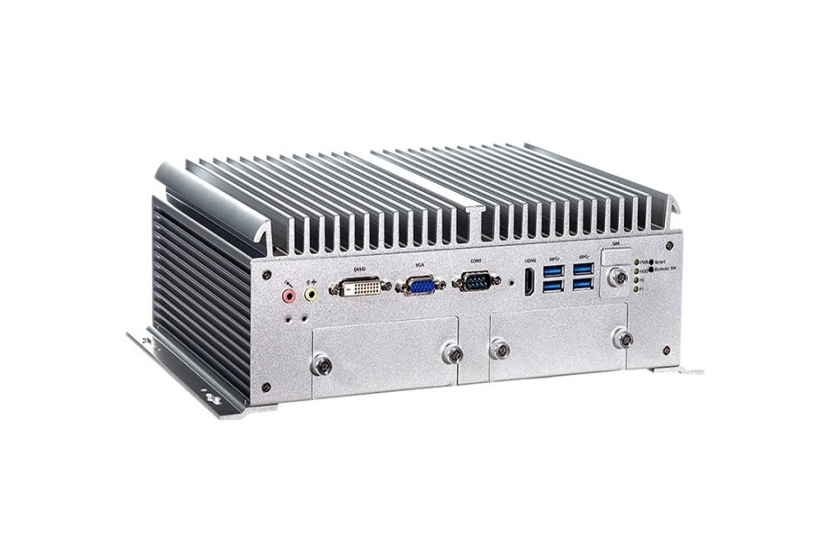

UST500-517-FL

Fanless Embedded System with 8th/7th/6th Gen Intel® Core™, Pentium® and Celeron® Processor for Vehicle and Railway PC

  • CE, FCC certified, E-Mark, EN 50155 compliant
  • 7th/6th gen Intel® Core™ & Pentium® processor (LGA1151 up to 65W) with Intel® Q170
  • Wide operating temperatures from -40°C to +70°C
  • Up to 16 RJ-45 PoE GbE LAN ports
  • 9 to 36VDC power input, ACC ignition supported
  • Two/four 2.5" SATA drive, 1 mSATA
  • Intelligent solution of vehicle power management (ACC ignition)
  • 8th gen Intel® Core™ support upon request

The UST500-517-FL is powered by the LGA1151 socket 7th/6th generation Intel® Core™ and Pentium® processors up to 65W with the Intel® Q170 chipset. The integrated 16 PoE ports are available in RJ-45 or M12 connectors for IP cameras. It provides a full scope of power protection that includes intelligent vehicle power management technology for ACC on/off delay, shutdown delay, and over/under voltage protection. Enhanced by its robust structure and system design, the UST500-517-FL is able to operate under a wide temperature range from -40°C to +70°C and vibration endurance up to 3 Grms. This transportation embedded box is in compliance with E-Mark and EN 50155 for mobile surveillance applications. There are 16 Gigabit LAN ports which support 802.3at/af Power over Ethernet with a total power budget of 200W. Its DVI-D, HDMI and VGA interfaces support three surveillance monitors. Furthermore, its external accessible SIM card slot enables users to easily change SIM card for different telecommunication service. With wireless LAN modules, this user-friendly transportation embedded system can real-time transmits the video to the control center. The two built-in or four swappable SATA hard drives are used for mass storage of video files.

CPU
  • 7th gen Intel® Core™, 35W
  • 6th gen Intel® Core™, 35 - 65W
  • Intel® Pentium®, 35W
  • Intel® Celeron®, 35W
Chipset
  • Intel® Q170
System Memory
  • 2 x SO-DIMM DDR4, up to 32GB
BIOS
  • AMI
COM
  • 2 x DB9 RS-232/422/485
USB
  • 4 x USB 3.0
Ethernet/PoE
  • 8/16 x PoE GbE 802.3af/802.3at supported
    - 8 x RJ-45 (with 2 SATA)
    - 16 x RJ-45 (with 4 SATA)
    - 8 x RJ-45, 8 x M12 A coded (with 4 SATA)
    - 8 x M12 A coded (with 4 SATA)
Display
  • 1 x VGA, 1 x DVI-D, 1 x HDMI
CANbus
  • N/A
Digital I/O
  • 1 x 6-in/2-out isolated DIO
Audio
  • Mic-in/Line-out
Storage
  • 2 x 2.5" built-in SATA drive (15 mm)
  • 4 x 2.5" swappable SATA drive (15 mm)
  • 1 x mSATA (use 1 PCI Express Mini Card slot)
Expansion
  • 2 x full-size PCI Express Mini Card slot
  • 2 x half-size PCI Express Mini Card slot
  • 2 x external accessible SIM Card slot
Others
  • 5 x Antenna opening
  • Intel® RAID 0/1/5/10
Power Supply
  • DC-input: 9 - 36 VDC, ACC ignition, typical 24 VDC
  • PoE Power
    - 802.3 af/802.3at supported, x16 port PoE power output
    - 120W (default), maximum 200W (BIOS setting)
Power Consumption
  • N/A
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F) with W.T. SSD
Relative Humidity
  • 10% ~ 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 ~ 500 Hz, X/Y/Z direction; random)
Shock
  • N/A
Dimensions
(W x D x H)
  • 280 x 210.5 x 70 mm (11.02" x 8.27" x 2.76") with 2 SATA (internal accessible), w/o wall-mount
  • 280 x 210.5 x 99.2 mm (11.02” x 8.27” x 3.91”) with 4 SATA, w/o wall-mount
Weight (net/gross)
  • 4.92 kg (10.85 lb)/5.75 kg (12.68 lb)
Certifications
  • CE certified
  • FCC, E-Mark, EN 50155 compliant
EOS
  • Windows® 7/8/10, Linux
  • *Windows® 7/8 only available for Skylake processor (6th gen)
Mounting
  • Wall mount
  • UST500-517-FL-16RJ-4SATA-TDC (P/N-E274500100)
  • Fanless embedded system with 6/7th gen Intel® desktop processor (LGA1151), Q170, VGA, DVI-D, HDMI, 6-in/2-out DIO, 2 COM, 4 USB 3.0, 16 RJ-45 PoE GbE LAN, 4 SATA drive and ACC ignition
  • UST500-517-FL-8RJ8M12-4SATA-TDC (P/N-E274500101)
  • Fanless embedded system with 6/7th gen Intel® desktop processor (LGA1151), Q170, VGA, DVI-D, HDMI, 6-in/2-out DIO, 2 COM, 4 USB 3.0, 8 RJ-45 PoE GbE LAN, 8 M12 A-coded PoE GbE LAN, 4 SATA drive and ACC ignition
  • UST500-517-FL-8M12-4SATA-TDC (P/N-E274500102)
  • Fanless embedded system with 6/7th gen Intel® desktop processor (LGA1151), Q170, VGA, DVI-D, HDMI, 6-in/2-out DIO, 2 COM, 4 USB 3.0, 8 M12 A-coded PoE GbE LAN, 4 SATA drive and ACC ignition
  • UST500-517-FL-8RJ-2SATA-TDC (2018 Q4 available)
  • Fanless embedded system with 6/7th gen Intel® desktop processor (LGA1151), Q170, VGA, DVI-D, HDMI, 6-in/2-out DIO, 2 COM, 4 USB 3.0, 8 RJ-45 PoE GbE LAN, 2 SATA drive and ACC ignition
  • 2.5” SATA HDD/SSD
  • 128GB or above
  • mSATA
  • 128GB
  • DDR4 SO-DIMM
  • 4GB ~ 32GB
  • 826N3230140E
  • 3G/GPS module
  • 826K6600090E
  • Wi-Fi/Bluetooth module
  • 594N3202730E
  • LAN cable (M12-A male 8P to RJ-45)
