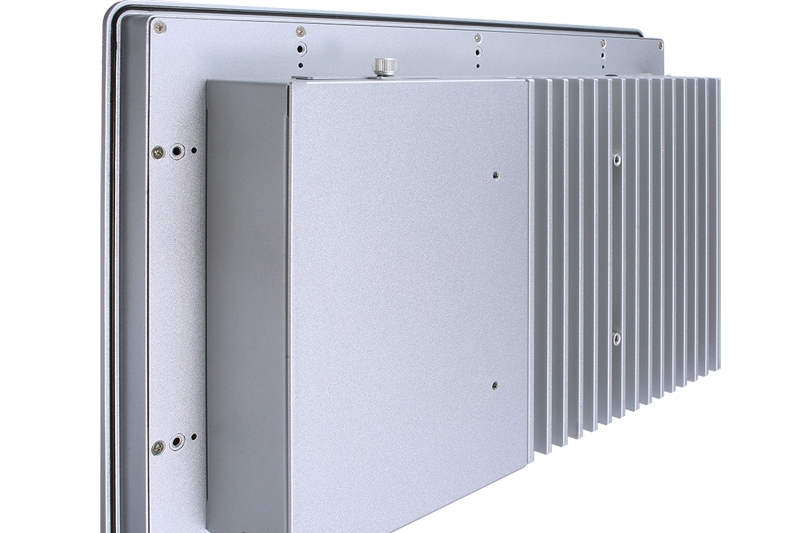

GOT318W-521

18.5" FHD TFT Multi-touch Panel Computer with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Intel® Pentium® Processors Gold

Features

  • 18.5" FHD projected capacitive multi-touch or 5-wire resistive touch
  • Fanless design with LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (Tj 100°C , TDP 35W)
  • Supports WLAN module & antenna (optional)
  • 2.5" SATA HDD/SSD

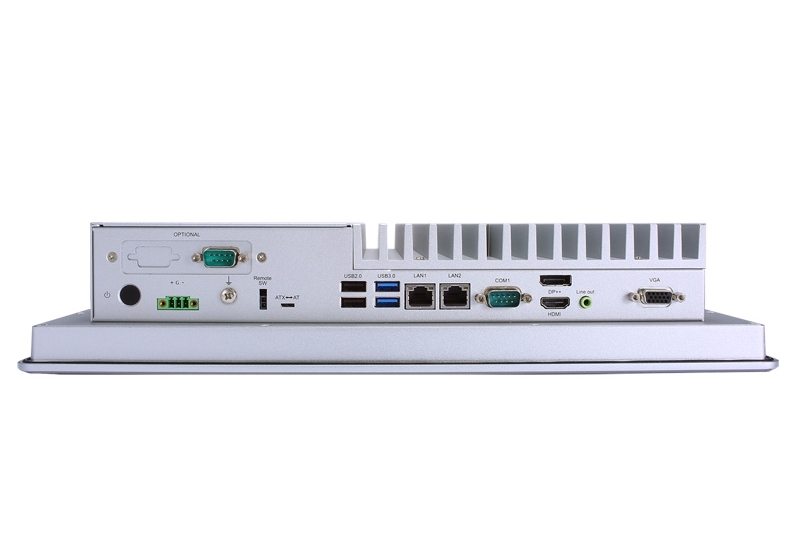

  • 2 LAN, 4 USB, 2 COM, 1 HDMI, 1 DP and 1 VGA
  • IP65-rated aluminum front bezel
  • Supports panel mount and VESA mount and wall mount
LCD Panel
  • 18.5" FHD TFT LCD
  • 500 nits
  • 1920 x 1080 pixels
CPU
  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (Tj 100°C, TDP 35W)
Chipset
  • Intel® H310
System Memory
  • 1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x 9-pin D-sub Male for RS-232
  • 1 x COM for RS232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x RJ-45 LAN
Display
  • 1 x HDMI
  • 1 x DP
  • 1 x VGA
Audio
  • 1 x Line-out
Storage
  • 1 x mSATA
  • 1 x 2.5” SATA HDD/SSD (7 mm and 9.5 mm, removable)
Expansion
  • 1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB)
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • TPM 2.0
  • 1 x Phoenix type connector for DC power input
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x AT/ATX switch (DC type only)
  • 1 x Grounding hole (DC Version)
Touchscreen
  • Projected capacitive multi-touch or 5-wire resistive touch
Front Bezel
  • IP65 front bezel
Power Supply
  • +12V/+19V/+24VDC
  • 1x terminal block
Power Comsumption
  • 120W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1G, 10 - 500 Hz, random for 2.5" SATA HDD
Dimensions
(W x D x H)
  • 460.8 x 77 x 285 mm (18.11" x 3.04" x 11.22")
Weight (net/gross)
  • 7.8kg (17.2lb)/10.2kg (22.5lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4
EOS
  • Windows® 10 IoT Enterprise, Windows® 10
Mounting
  • Panel mount
  • VESA mount
  • Wall mount
  • GOT318W-521-PCT-DC (P/N-E22B318104)
  • 18.5" FHD TFT fanless touch panel computer support LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (Tj 100°C, TDP 35W), projected capacitive multi-touch screen and 24 VDC terminal block with small Phoenix connector
  • GOT318W-521-R-DC
  • 18.5"FHD TFT fanless touch panel computer supports LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (Tj 100°C, TDP 35W), 5-wire resistive touch screen and 24 VDC terminal block with small Phoenix connector
  • 4G LTE Kit
  • Wi-Fi Kit
  • 881231770A0E
  • Wall mount kit
  • 50906D24000E
  • Adaptor 24V/120W, wire only, FSP120-AAAN3
