GOT810-845

10.4" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Celeron® N3

  • 10.4" XGA TFT LCD flat bezel projected capacitive (or resistive) touch
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with type 316
  • -10°C to +50°C wide operating temperature range
  • Fanless system with Intel® Celeron® N3060
  • Optional Wi-Fi/3G kit for wireless network connectivity
  • 9 to 36 VDC wide range power input

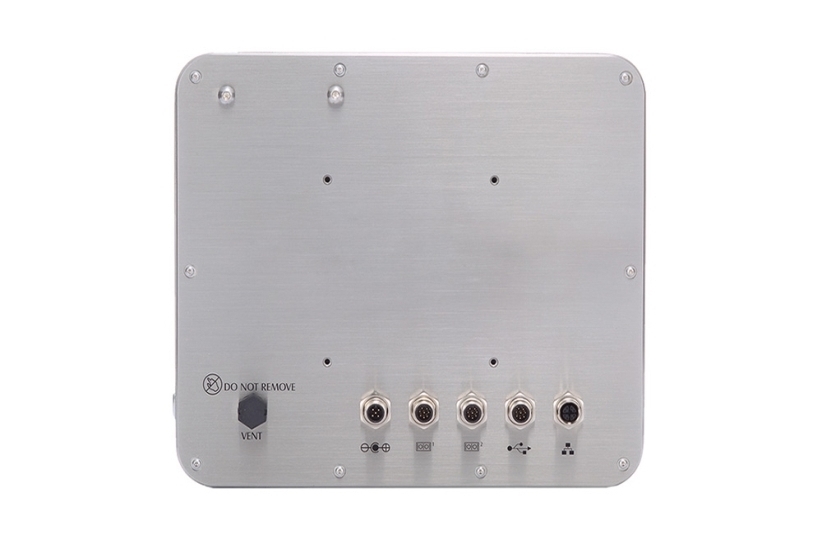

  • M12 type I/O connectors for harsh environments

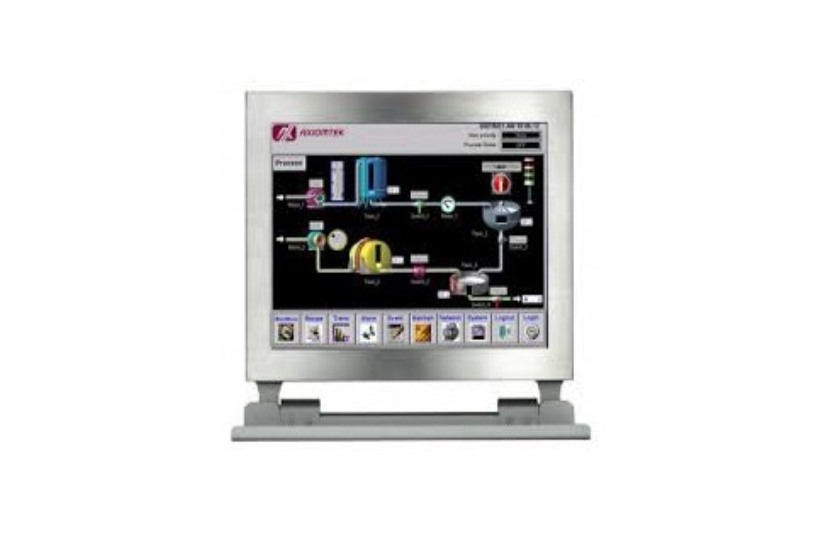

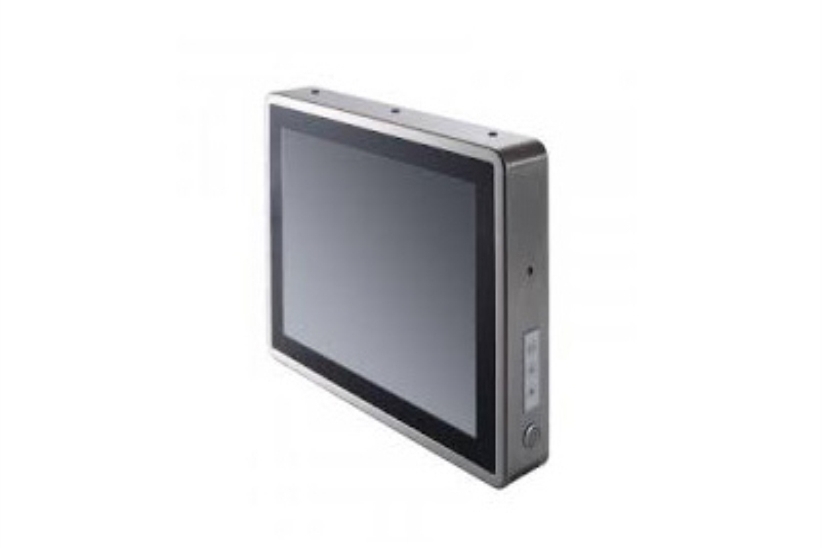

The GOT810-845 is a 10.4-inch stainless steel fanless touch panel computer. Its full IP66 and IP69K-rated enclosure and IP66-rated M12-type connectors are designed for harsh industrial and outdoor environments. The GOT810-845 is powered by the Intel® Celeron® processor N3060 (codename: Braswell). It has a 10.4-inch XGA TFT LCD display with 350 nits of brightness. The rugged fanless panel PC comes with two touchscreen options: 5-wire flat resistive touch and projected capacitive multi-touch. The industrial-grade GOT810-845 has a full grade 316 stainless steel enclosure and has IP66 and IP69K ratings for critical environments that require a higher level of resistance to corrosion such as food factories. Moreover, the 10.4-inch XGA stainless panel computer utilizes a seamless flat bezel design, five IP66-rated M12 type I/O connectors and wide range power input of 9 to 36V DC for an extended service life. The GOT810-845 can operate under wide temperature settings ranging from -10°C to +50°C and withstand vibration up to 2G.

LCD Panel
  • 10.4" XGA TFT LCD
  • 350 nits
  • 1024 x 768 pixels
CPU
  • Intel® Celeron® N3060 2C@1.6 GHz (up to 2.48 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L 1333 MHz SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232, M12 A-coded)
  • 1 x RS-232 (M12 A-coded)
USB
  • 2 x USB 2.0 (M12 A-coded)
Ethernet
  • 1 x 10/100/1000 Mbps (M12 X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x mSATA
  • 1 x SATA
Expansion
  • 2 x PCI Express Mini Card slot
Others
  • 1 x DC power connector (M12 A code)
Touchscreen
  • 5-wire resistive touch or projected capacitive multi-touch
Front Bezel
  • Stainless type 316
Power Supply
  • 9 to 36 VDC
Power Comsumption
  • 29W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • -10°C to +50°C (14°F to +122°F)
Relative Humidity
  • 20% to 90% @40°C; non-condensing
Vibration
  • 2G, 10 - 500Hz, random for SSD/mSATA
Dimensions (W x D x H)
  • 284 x 56 x 241 mm (11.2" x 2.2" x 9.49")
Weight (net/gross)
  • 2.8 kg (6.17 lb)/4 kg (8.82 lb)
Certifications
  • CE
EOS
  • WES 7, WE8S, indows® 7, Windows® 8/8.1, Windows® 10
Mounting
  • Suspension
  • VESA mount
  • GOT810-845-R
  • 10.4" IP66 & IP69K stainless steel touch panel computer with flat resistive touch with Intel® Pentium® N3060 onboard XGA 350 nits LCD water-proof power cable (1.8 m)
  • GOT810-845-C
  • 10.4" IP66 & IP69K stainless steel touch panel computer with projected capacitive touch with Intel® Pentium® N3060 onboard XGA 350 nits LCD water-proof power cable (1.8 m)
  • 594B8122100E
  • Water-proof COM cable (1.8 m)
  • 594B8152820E
  • USB cable M12-8P-F, 2 x type A (1.8 m) EN
  • 594B8152710E
  • Water-proof LAN cable (1.8 m)
  • 50966224010E
  • Adapter 24V 90W, M12 A-code 5P FSP090AAAN3
