GOT812LR-834

12.1" XGA TFT IP66-rated Stainless Steel Fanless Touch Panel Computer with Intel® Atom® Processor E3827 and High Brightn

  • Sunlight readable 12.1" TFT LCD with low reflection and high brightness (optional)
  • IP66 (NEMA 4X) water/dust/corrosion-proof design
  • Stainless steel front bezel enclosure with type 316
  • Wide operating temperature range of -20°C to +55°C
  • Fanless system with Intel® Atom® processor E3827
  • Optional Wi-Fi/3G kit for wireless network connectivity

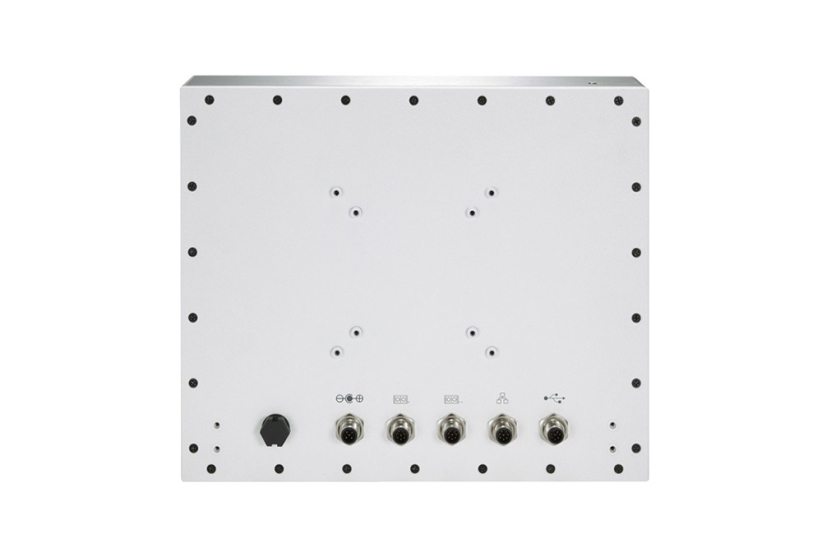

  • Flexible and expandable M12 type I/O connections
  • Supports suspension and VESA mount

The GOT812LR-834 supports the low power consumption and fanless Intel® Atom® processor E3827 at 1.75 GHz and has maximum memory capacity up to 8 GB. It offers two LCD options: One is a 12.1-inch XGA TFT LCD with 1000 nits brightness (GOT812LR-834) and a low reflection resistive touch and the other is SVGA TFT LCD with 500 nits brightness (GOT812L-834). The GOT812LR-834 featuring fanless and noiseless design supports a wide operating temperature range from-20°C to +55°C and has a full IP66-rated waterproof enclosure to prevent outside damage from caused by water drip damage while installed at public or enclosed environments. The excellent mechanical design keeps system working efficiently and reliability. The GOT812LR-834 is an excellent human machine interface platform for food factories, steel mills, gas pumps, outdoor information kiosks and point of sale terminals.

LCD Panel
  • 12.1" XGA TFT LCD (GOT812LR)
    12.1" SVGA TFT LCD (GOT812L)
  • 1000 nits (GOT812LR)
    500 nits (GOT812L)
  • 1024 x 768 (GOT812LR)
    800 x 600 (GOT812L)
CPU
  • Intel® Atom® processor E3827 1.75 GHz
Chipset
  • SoC integrated
System Memory
  • 2 x 204-pin SO-DIMM DDR3L-1333, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, M12)
USB
  • 2 x USB 2.0 (M12)
Ethernet
  • 1 x 10/100/1000 Mbps (M12 X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SSD
  • 1 x CFast™
Expansion
  • 2 x PCI Express Mini Card slot
Others
  • 1 x M12-type DC
Touchscreen
  • 5-wire resistive low reflective type
Front Bezel
  • Stainless type 316
Power Supply
  • 9 to 36 VDC
Power Comsumption
  • 47W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • -20°C to +55°C (-4°F to +131°F)
Relative Humidity
  • 10% to 95% @ +40°C, non-condensing
Vibration
  • 2G, 5 - 500Hz, random for 2.5" SSD
  • 2G, 5 - 500Hz, random for CompactFlash™
Dimensions (W x D x H)
  • 304 x 58.5 x 248 mm (11.97" x 2.3" x 9.76")
Weight (net/gross)
  • 4.6 kg (10.14lb)/ 6.2kg (13.67lb)
Certifications
  • CE
EOS
  • Windows® 10 IoT, Windows® 10, Windows® 8/8.1, WE8S, Windows® 7, WES 7
Mounting

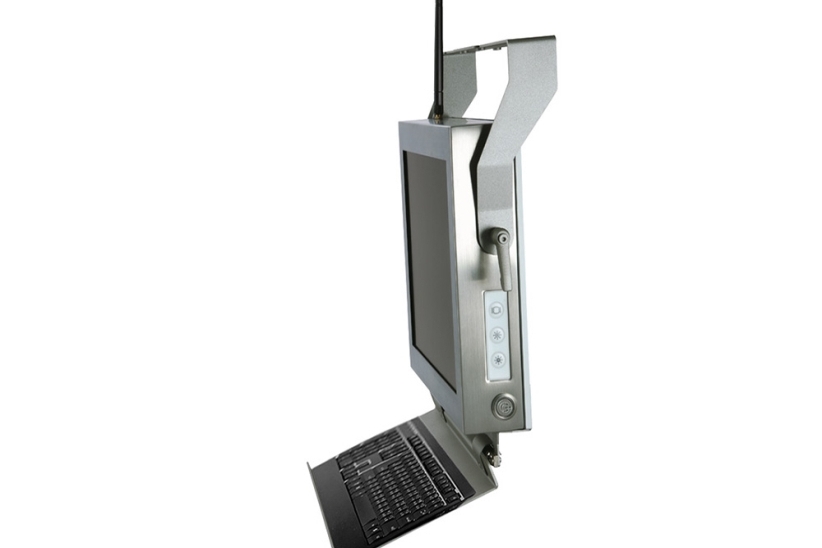

  • Suspension mount
  • VESA mount
  • GOT812LR-834-DC
  • 12.1" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom® E3827, sunlight readable LCD (1000 nits), 5-wire resistive touch screen and 9 to 36 VDC power input
  • GOT812LR-834-RF-DC
  • 12.1" XGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom® E3827, sunlight readable LCD (1000 nits), 5-wire resistive touch screen, 9 to 36 VDC power input and Wi-Fi or 3G
  • GOT812L-834-DC
  • 12.1" SVGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom® E3827, general purpose LCD (500 nits), 5-wire resistive touch screen and 9 to 36 VDC power input
  • GOT812L-834-RF-DC
  • 12.1" SVGA fanless IP66-rated stainless steel touch panel computer with Intel® Atom® E3827, general purpose LCD (500 nits), 5-wire resistive touch screen, 9 to 36 VDC power input and Wi-Fi or 3G
  • 822B8120070E
  • GOT812 keyboard bracket (with keyboard)
  • 822B8120080E
  • GOT812 suspension kit
  • 594B8122100E
  • Water-proof COM cable (1.8 m)
  • 594B8122820E
  • Water-proof USB cable (1.8 m)
  • 594B8122720E
  • Water-proof LAN cable (1.8 m)
  • 50966D45010E
  • Adapter 24V 120W. M12 A-code 5P. LTE120ES
