GOT812W-511

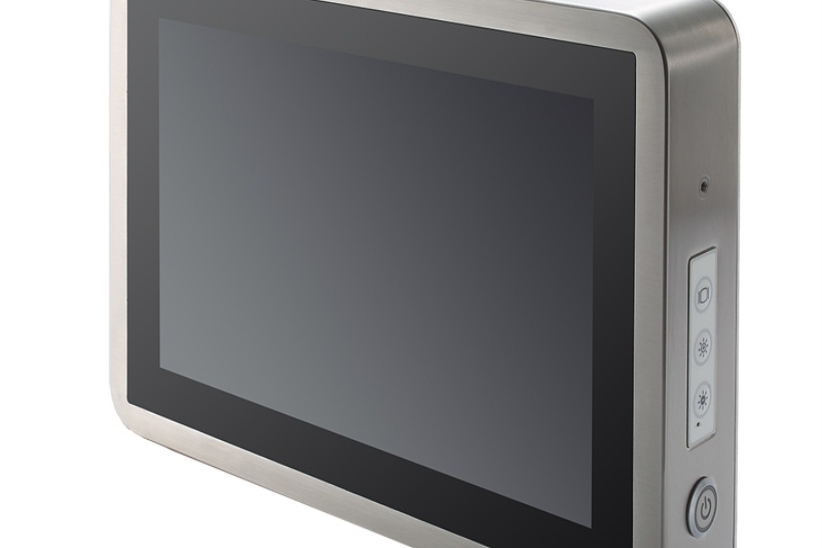

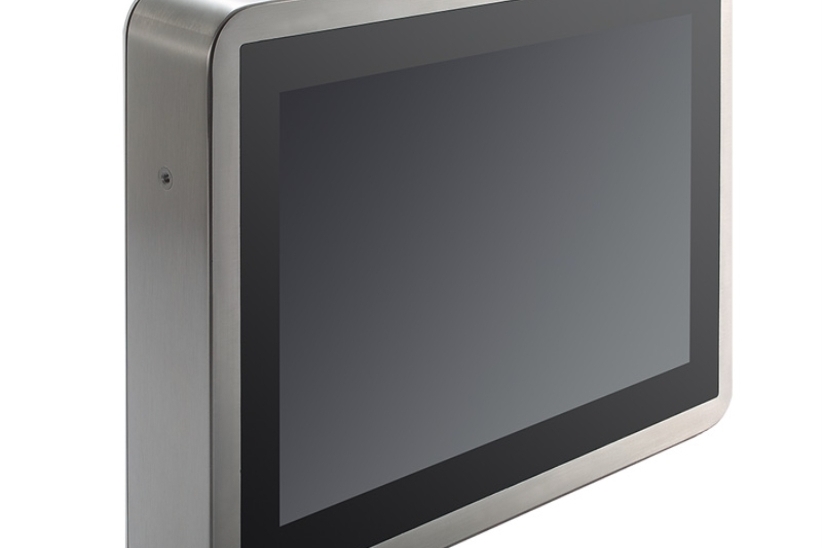

12.1" WXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5-7

  • 12.1" TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with type 316
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-7300U processor
  • Optional Wi-Fi/3G kit for wireless network connectivity
  • 9 to 36 VDC wide range power input
  • Supports VESA mount

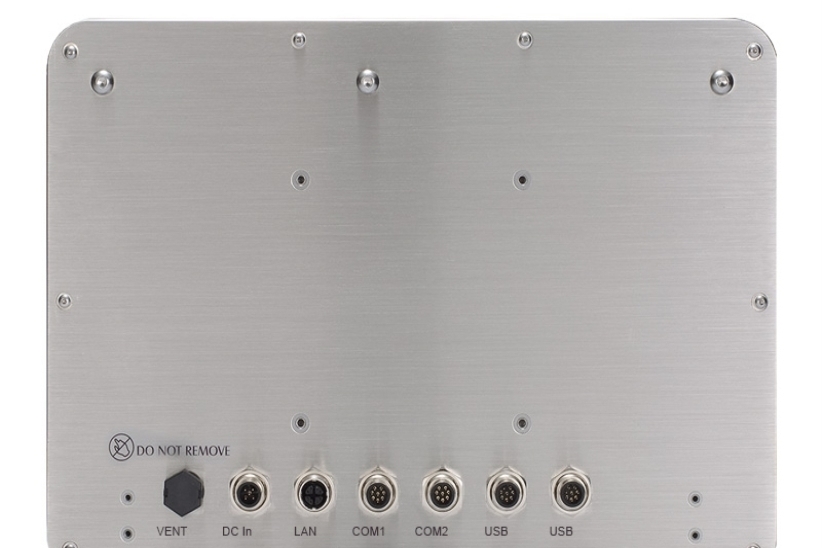

  • M12 type connectors for harsh environments
  • 12.1" TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with type 316
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-7300U processor
  • Optional Wi-Fi/3G kit for wireless network connectivity
  • 9 to 36 VDC wide range power input
  • Supports VESA mount
  • M12 type connectors for harsh environments
LCD Panel
  • 12.1" WXGA TFT LCD
  • 400 nits
  • 1280 x 800 pixels
CPU
  • Intel® Core™ i5-7300U 2.6GHz, up to 3.5 GHz (Kaby Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 4 x USB 2.0 (A-coded)
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-IT; X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SSD HDD or 1 x 2.5" SATA HDD (9.5 mm height)
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x Half-size PCI Express Mini Card slot
Others
  • 1 x DC power connector (M12)
Touchscreen
  • 5-wire resistive touch or projected capacitive multi-touch
Front Bezel
  • Stainless type 316
Power Supply
  • 9 to 36 VDC
Power Comsumption
  • 56.5W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 332 x 55 x 234 mm (13.07" x 2.2" x 9.21)
Weight (net/gross)
  • 4.55 kgs (10.03 lb)/6 kgs (13.22 lb)
Certifications
  • CE
EOS
  • Windows® 10 IoT, Windows® 10
Mounting
  • Suspension
  • VESA mount
  • GOT812W-511-C-DC (P/N-E22B812134)
  • 12.1" WXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-7300U, projected capacitive touch screen, 400 nits LCD and 9 to 36 VDC power input
  • 594B8122100E
  • Water-proof COM cable (1.8 m)
  • 594B8152710E
  • Water-proof LAN cable (1.8 m)
  • 594B8152820E
  • Water-proof USB cable (1.8 m)
  • 50966224010E
  • Adapter 24V 90W, M12 A-code 5P FSP090AAAN3
