UST210-83K-FL

Compact DIN-rail Fanless Embedded System with Intel® Atom® x5-E3940 Processor for In-Vehicle Gateway Application

Features

  • CE, FCC certified; ISO 7637-2 compliant
  • Intel® Atom® x5-E3940 processor
  • Extreme cost-effective with fanless and cableless design
  • Wide operating temperature range from -40°C to +70°C
  • Supports 9-36 VDC & 12/24 VDC typical in-vehicle power input
  • Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
  • Support COM, CAN, USB, GbE PoE LAN
  • 8-bit programmable DIO
  • Supports SocketCAN
  • AMS.AXView intelligent remote monitoring
CPU
  • Intel® Atom® x5-E3940 2C @1.6 GHz, TDP: 9.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 2 x Terminal block Serial consoler or RS-232/422/485
USB
  • 2 x USB 3.0
PoE
  • 4 x RJ-45 PoE LAN
  • Max. 30W
  • Supports PoE & PoE+
Ethernet
  • 4 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® i211-AT)
  • Isolation voltage: 1.5 kV
Display
  • 1 x HDMI (up to 1920x1080@60Hz)
CANbus
  • 1 x Terminal block CANBus 2.0 A/B
Digital I/O

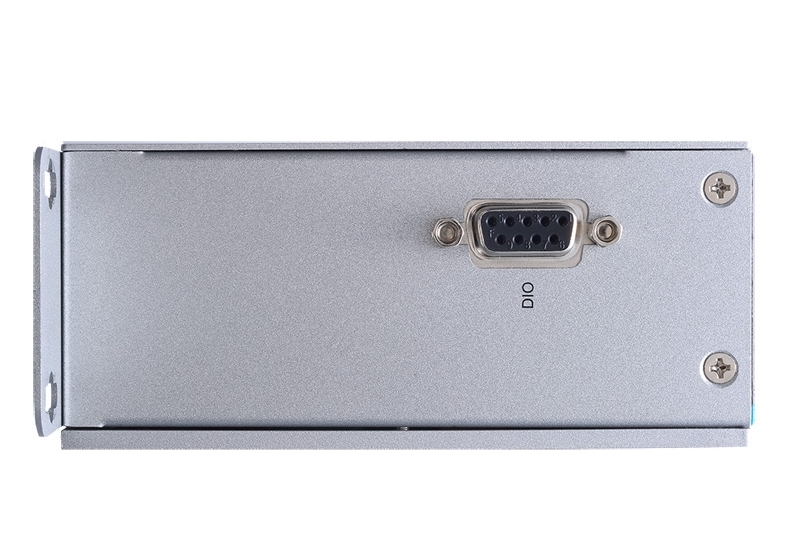

  • 1 x DB9 8-bit programmable DIO
Audio
  • N/A
Storage
  • 1 x Half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x Internal 2.5” SATA drive (9.5 mm height)
Expansion
  • 1 x Full-size Rev. 1.2 PCI Express Mini Card slot (USB with SIM slot)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot (mSATA/USB)
Others

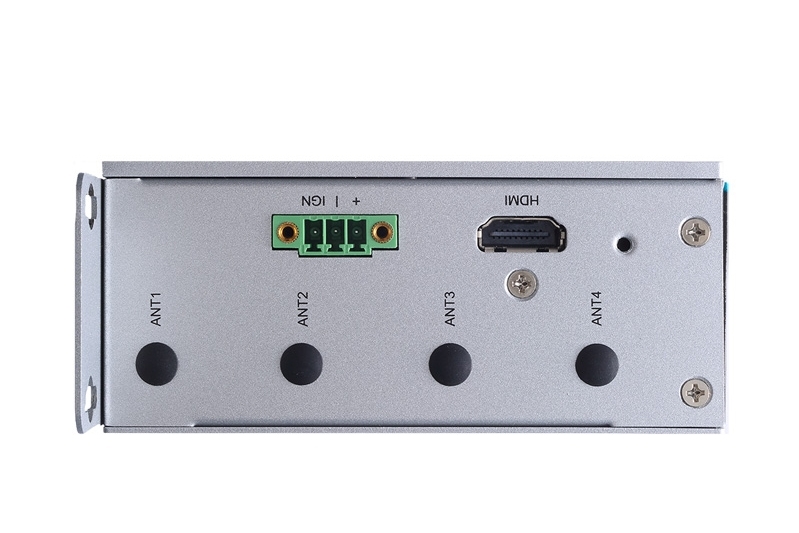

  • 4 x Antenna opening
  • TPM 2.0
Power Supply
  • 1 x Terminal block, 9 to 36 VDC (Typical 12/24 VDC) with smart ignition
Power Consumption
  • Non-PoE SKU: 9 VDC, 3.878A; 36VDC, 0.85A
  • PoE SKU: 9VDC 6.298A, 36VDC 1.617A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP20
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Gms with mSATA and SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • N/A
Dimensions
(W x D x H)
  • Non-PoE SKU: 48 x 110 x 155 mm (1.89" x 4.33" x 6.1")
  • PoE SKU: 66.7 x 110 x 155 mm (2.63" x 4.33" x 6.1")
Weight (net/gross)
  • Non-PoE SKU: 0.51 kg (1.12 lb)/0.79 kg (1.74 lb)
Certifications
  • CE (Class A), FCC (Class A) certified; ISO 7637-2 compliant
EOS Support
  • Windows® 10 64-bit, Ubuntu 18.04
Software Support
  • AMS.AXView
Mounting

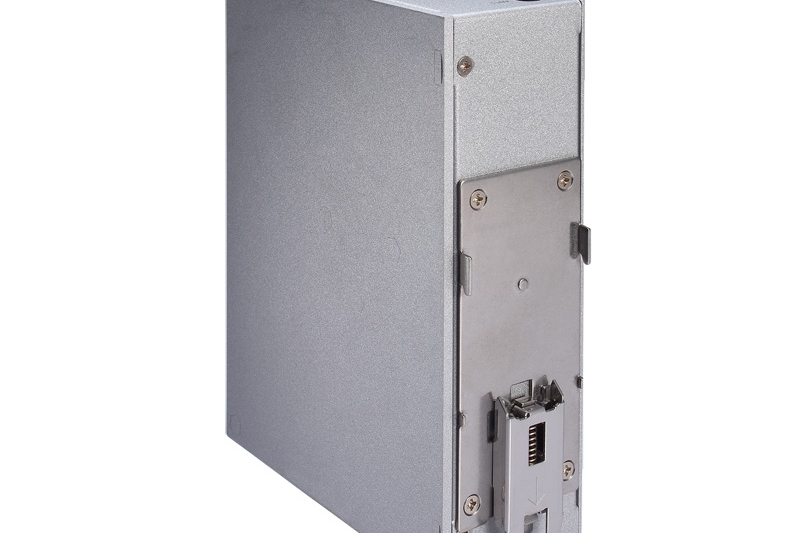

  • Wall mount, DIN-rail
  • UST210-83K-FL-E3940-CANCOM-TVDC (P/N
  • E274210100)
  • UST210-83K-FL-E3940-2COM-TVDC
  • Fanless embedded system with Intel® Atom® x5-E3940 processor, 2COM, 4 LAN, 2 USB, 1 DIO and 1 HDMI, operating temperature from -40 to 70°C, TPM 2.0 supported, with Smart Ignition Non-PoE SKU
  • UST210-83K-FL-E3940-CANCOM-POE-TVDC
  • Fanless embedded system with Intel® Atom® x5-E3940 processor, 1 CAN, 1COM, 4 PoE LAN, 2 USB, 1 DIO and 1 HDMI, operating temperature from -40 to 70°C, TPM 2.0 supported, with Smart Ignition PoE SKU
  • UST210-83K-FL-E3940-2COM-POE-TVDC
  • Fanless embedded system with Intel® Atom® x5-E3940 processor, 2COM, 4 LAN, 2 USB, 1 DIO and 1 HDMI, operating temperature from -40 to 70°C, TPM 2.0 supported, with Smart Ignition
  • 8812C300GA0E
  • 3G UC20GKit tBOX/ICO(20) (E)
  • 8812C300HA0E
  • 3G/GPS UC20GKit tBOX/ICO(20) (E)
  • 8812C300IA0E
  • LTE SIM7100JC Kit for ICO(20) JPN SFP(E)
  • 8812C300EA0E
  • LTE SIMCOM SIM7100C(TW) for ICO300 SFP(E)
  • 8812C300DA0E
  • LTE SIMCOM SIM7100E(EU) for ICO300 SFP(E)
  • 50906D24000E
  • Adaptor 24V/120W, wire only, FSP120-AAAN3
