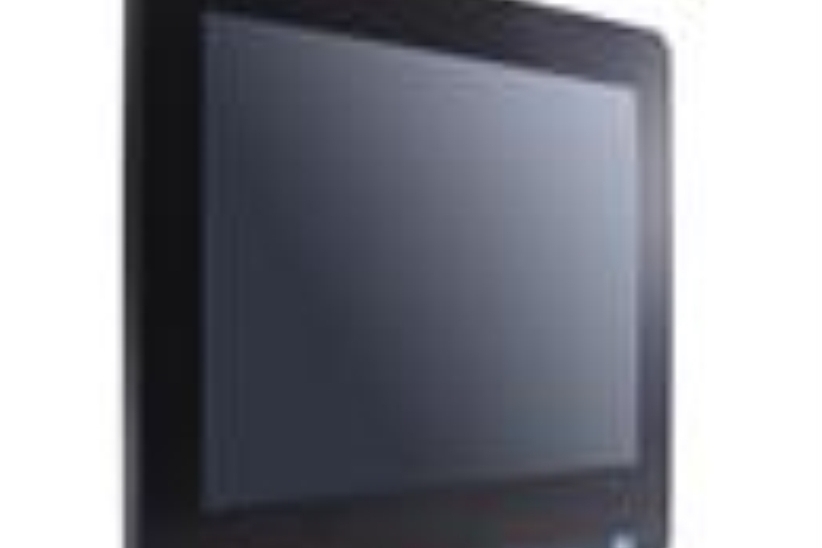

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350

  • 10.4" XGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3350

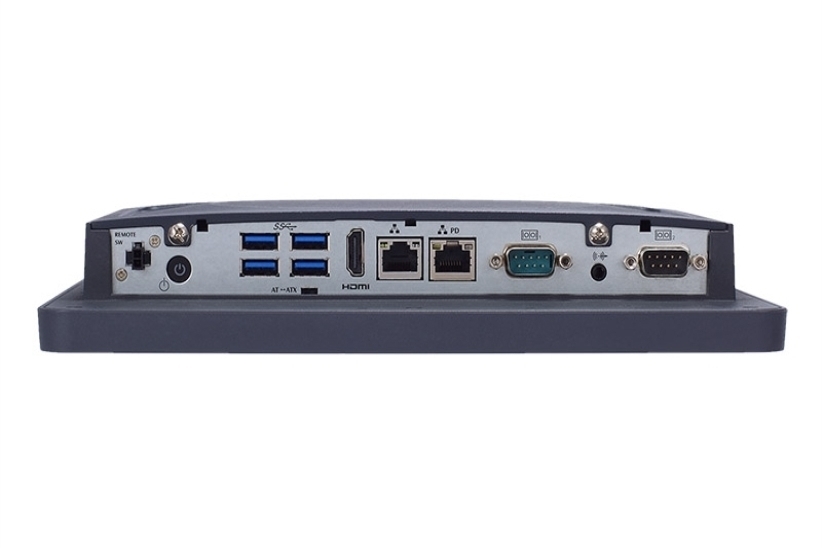

  • 1 GbE LAN, 1 PoE PD, 4 USB and 2 COM
  • IP65-rated front bezel and IPX1 rated back cover
  • External AT/ATX mode selection switch
  • Easy maintenance design for storage and memory

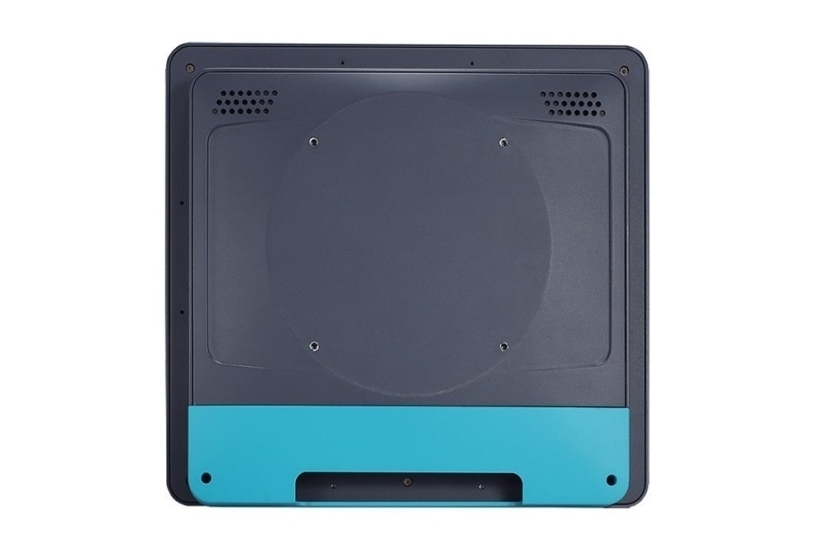

  • Supports panel mount, wall mount, VESA arm and desktop stand
  • Adjustable RS-232/422/485 setting via BIOS
  • Aluminum cover for the better thermal dissipation and reliability



The GOT110-316-PoE-PD is a 10.4-inch fanless touch panel computer utilizing Power over Ethernet Powered Devices (PoE PD) technology. The industrial touch panel PC is powered by the Intel® Celeron® processor N3350 (codename: Apollo Lake) and adopts a 10.4-inch XGA TFT LCD display with LED backlight and 350 nits of brightness. The touch panel PC comes with the choice of a projected capacitive touchscreen or 5-wire flat resistive touchscreen. Its IP65-rated front bezel and IPX1-rated back cover as well as a wide operating temperature of 0°C to +50°C and up to 2G of vibration guarantee reliable operation in harsh environments. This 10.4-inch all-in-one touch panel PC adopts plastic plus aluminum mechanism design with an excellent thermal solution to ensure reliable operation. With a body thickness of only 41.5 mm, the ultra slim device can be easily deployed in any space-limited environments. The GOT110-316-PoE-PD is ideally built for multimedia kiosks or as a human-machine interface for automation applications.

  • LCD Panel
    • 10.4" XGA TFT LCD
    • 350 nits (XGA)
    • 1024 x 768 pixels
    • Intel® Celeron® processor N3350 (turbo boost disable)
    • SoC integrated
    System Memory
    • 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
    • AMI
    • 1 x RS-232/422/485 (default RS-232)
    • 1 x RS-232
    • 4 x USB 3.0
    • 1 x 10/100/1000 Mbps Ethernet
    • 1 x PoE PD
    • 1 x HDMI
    • 1 x Line-out
    • 1 x 2.5" SATA HDD (9.5 mm height) or 1 x mSATA
    • 1 x Full-size PCI Express Mini Card slot with mSATA
    • 1 x Full-size PCI Express Mini Card slot with SIM
    • 1 x Power button (ATX)
    • 1 x Remote power switch
    • 1 x ATX/AT selectable switch
    • Projected capacitive multi-touch
    • 5-wire flat resistive touch
    Front Bezel
    • IP65, NEMA 4 rugged protection, plastic front bezel
    Power Supply
    • Power Device (PD): follows IEEE 802.3at (25.5W)
    Power Comsumption
    • 25.5W
    Watchdog Timer
    • 255 levels, 0 to 255 sec.
    Operating Temperature
    • 0°C to +50°C (+32°F to +122°F)
    Relative Humidity
    • 20% to 90% @ +40°C; non-condensing
    • 2G, 5 - 500Hz, random for SSD
    (W x D x H)
    • 259.43 x 43.5 x 232.73 mm (10.21" x 1.71" x 9.16")
    Weight (net/gross)
    • 1.8 kg (3.96 lb)/3 kg (6.61 lb)
    • CE, FCC
    • Windows® 10
    • Panel mount
    • Wall mount
    • Stand
  • GOT110-316-R-PoE-PD
  • 10.4" XGA TFT cost-effective fanless touch panel computer with Intel® N3350 CPU on board, resistive touch and PoE PD power input
  • GOT110-316-PCT-PoE-PD
  • 10.4" XGA TFT cost-effective fanless touch panel computer with Intel® N3350 CPU on board, projected capacitive multi-touch screen and PoE PD power input
  • Wi-Fi + Bluetooth kit
  • Panel mount kit
  • Wall mount kit
  • Stand kit
