GOT115-319

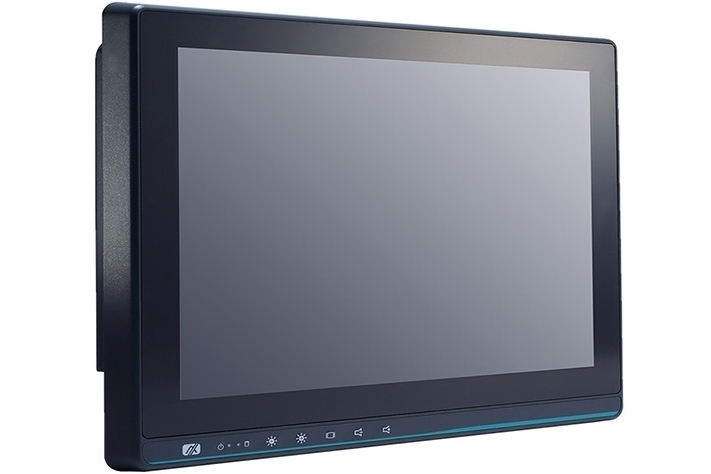

15" XGA TFT LCD display with LED backlight
Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200
2 GbE LAN, 4 USB and 2 COM
IP65-rated plastic front bezel
Supports RFID and wireless module (optional)
External AT/ATX mode selection switch
Easy access storage & RAM design
Supports panel mount, wall mount, VESA arm and desktop stand
RS-232/422/485 with RI/5V/12V selectable by BIOS
Programmable OSD function key

LCD Panel	15" XGA TFT LCD 300 nits (XGA) 1024 x 768 pixels
CPU	Intel® Celeron® processor N3350 2 cores (up to 2.4 GHz) Intel® Pentium® processor N4200 4 cores (up to 2.5 GHz)
Chipset	SoC integrated
System Memory	1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS	AMI
COM	1 x RS-232/422/485 (default RS-232) 1 x RS-232
USB	2 x USB 3.0 2 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps
Display	N/A
Audio	1 x Audio (Line-out)
Storage	1 x 2.5" SATA HDD (9.5 mm height) 1 x mSATA 1 x MicroSD card
Expansion	1 x M.2 Key E for wireless module 1 x Full-size PCI Express Mini Card slot
Others	1 x Screw type connector for power 1 x Power button (ATX) 1 x Remote power switch 1 x ATX/AT selectable switch Speaker Microphone
Touchscreen	Projected capacitive multi-touch 5-wire flat resistive touch
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	9 to 24 VDC with adapter cable
Power Comsumption	28.8W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Relative Humidity	10% - 90% @ +40°C; non-condensing
Vibration	2G, 5 - 500Hz, random for SSD
Dimensions (W x D x H)	329.69 x 50 x 306 mm (13" x 2" x 12")
Weight (net/gross)	3.2 kg (7.1 lb)/4.8 kg (10.6 lb)
Certifications	CE
EOS	Windows® 10
Mounting	Panel mount kit Wall mount kit Stand kit

GOT115-319-R DC
15" XGA fanless touch panel computer with Intel® Celeron® processor N3350 onboard, 5 wire resistive touch screen, EMI Class B, screw-type connector with DC cable and logo
GOT115-319-PCT N4200 DC
15" XGA fanless touch panel computer with Intel® Pentium® processor N4200 onboard, projected capacitive multi-touch, EMI Class B, screw-type connector with DC cable and logo
