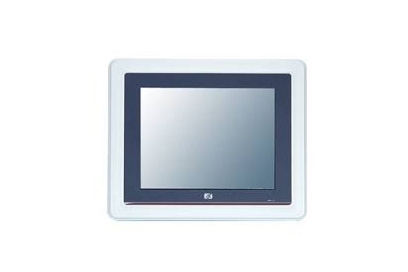

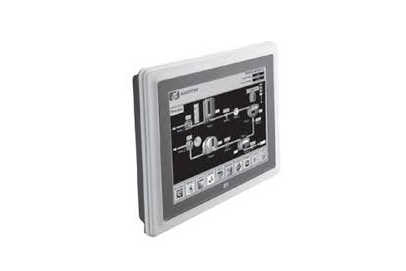

GOT5840T-834

8.4" SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900



  • 8.4" SVGA TFT LCD display with LED backlight
  • Fanless cooling system with Intel® Celeron® processor J1900
  • Ultra slim and super light design
  • WLAN module and internal antenna
  • PCI Express Mini Card slots for easy expansion

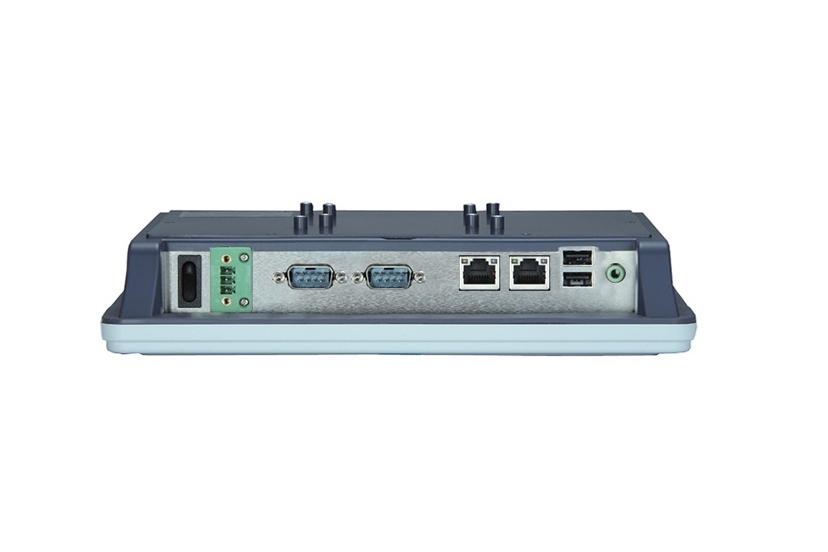

  • 2 GbE LAN, 2 USB & 2 COM
  • Supports panel mount/wall mount/VESA arm
  • Plastic and IP65-rated front bezel

Datasheed (PDF)



The GOT5840T-834 is equipped with an 8.4-inch SVGA TFT LCD display and is also powered by the Intel® Atom™ processor J1900. The GOT5840T-834 has already gained success as a customer solution for small kiosks. When customers are in need of a slim-type touch panel computer with high brightness capabilities to be installed in a space constricting area- the GOT5840T-834 stands out as the best choice.



LCD Panel
  • 8.4" SVGA TFT LCD
  • 350 nits
  • 800 x 600 pixels
CPU
  • Intel® Celeron® processor J1900
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i210IT)
Display
  • N/A
Audio
  • Line-out
Storage
  • 1 x CFas™ or mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • Built-in WLAN antenna
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 9 ~ 36VDC with over-current protection fuse
  • AC version: 100 ~ 240V AC-DC, 60W power adapter
Power Comsumption
  • 25W
Watchdog Timer
  • 255 levels, 0~255 sec.
Operating Temperature
  • 0°C ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition)
  • 0°C ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM)
Relative Humidity
  • 20% ~ 90% @ 40°C; non-condensing
Vibration
  • 2G, 5~500Hz, random for CFast™
Dimensions
(W x D x H)
  • 250.7 x 45.8 x 204.7 mm (9.87" x 1.80" x 8.06")
Weight (net/gross)
  • 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
Certificate
  • CE
EOS
  • Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand
  • GOT5840T-834-J
  • 8.4" SVGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B
  • GOT5840T-834-DC
  • 8.4" SVGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen
  • and 9 to36 VDC power input (terminal block connector)
  • Wi-Fi + Bluetooth kit
  •
  • E226171106
  • Stand kit
  • 881251203A0E
  • RFID kit
