eBOX626-311-FL

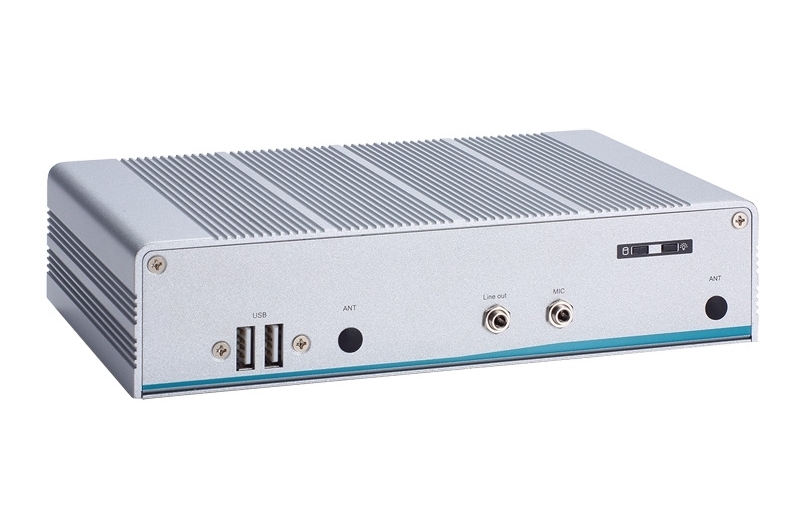

Fanless Embedded System with Intel® Atom® x5-E3940 1.8 GHz, HDMI, VGA, 2 GbE LAN, 6 USB and 3 COM

Intel® Atom® x5-E3940 onboard

204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory

Supports 2 GbE LAN, 3 COM and 6 USB

One 2.5” SATA drive bay and mSATA supported

Trusted Platform Module (TPM) 1.2

2 PCI Express Mini Card slots and 1 SIM slot

-20°C to +60°C operating temperature range

AMS.AXView intelligent remote monitoring software for IIoT

Datasheed (PDF)

The eBOX626-311-FL is powered by the Intel® Atom® processor x5-E3940. The fanless embedded box PC was designed to operate reliably in industrial environments – with an IP40-rated enclosure, extended -40°C to +60°C support, and 3 Grms vibration resistance. To ensure system security, it utilizes the Trusted Platform Module (TPM) 1.2 function. The embedded box computer eBOX626-311-FL is well-suited for industrial controllers, intelligent robotic control, intelligent gateway systems, smart kiosks, visual inspection and data visualization.

CPU	Intel® Atom® Processor x5-E3940 1.8 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin DDR3L-1866 SO-DIMM, up to 8GB
BIOS	AMI
COM	2 x RS-232/422/485 1 x RS-232
USB	4 x USB 3.0 2 x USB 2.0
Ethernet/PoE	2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)
Display	1 x HDMI (lockable) 1 x VGA
Digital I/O	N/A
Audio	1 x Audio (Mic-in/Line-out)
Storage	1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting)
Expansion	2 x Full-size PCI Express Mini Card slot (USB + PCIe signal) 1 x SIM slot
Others	1 x Phoenix type VDC power input connector 4 x SMA-type antenna connector 1 x AT/ATX switch 1 x ATX power switch TPM 1.2
Power Supply	9 to 36 VDC
Watchdog Timer	65536 levels, 1 to 65535 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (with W.T. SSD/DRAM for 9 to 36 VDC) (Default: Turbo mode)
Relative Humidity	10% - 95%, non-condensing
Vibration	IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Shock	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Dimensions (W x D x H)	200 x 120 x 46 mm (7.87" x 4.72" x 1.81")
Weight (net/gross)	1.2 kg (2.65 lb)/1.6 kg (3.53 lb)
Certifications	CE, FCC Class A
EOS Support	AMS.AXView
Software Support	Win10 IoT, Linux
Mounting	Wall mount Kit VESA mount kit DIN-rail kit

eBOX626-311-FL
Fanless embedded system with Intel® Atom® x5-E3940 1.8 GHz, HDMI, VGA, 2 GbE LANs, 6 USB and 3 COM (w/o 24V/120W adapter and power cord)
2.5” SATA HDD
320GB or above
2.5” SATA SSD
128GB or above
DDR3L SO-DIMM
2GB to 8GB
mSATA
64MB or above
8816K6271A0E
Wall mount Kit
8816K6272A0E
VESA mount kit
8816K6273A0E
DIN-rail kit
881606208A0E
Wi-Fi module
3G/LTE module
50906D24000E
24V/120W power adapter
