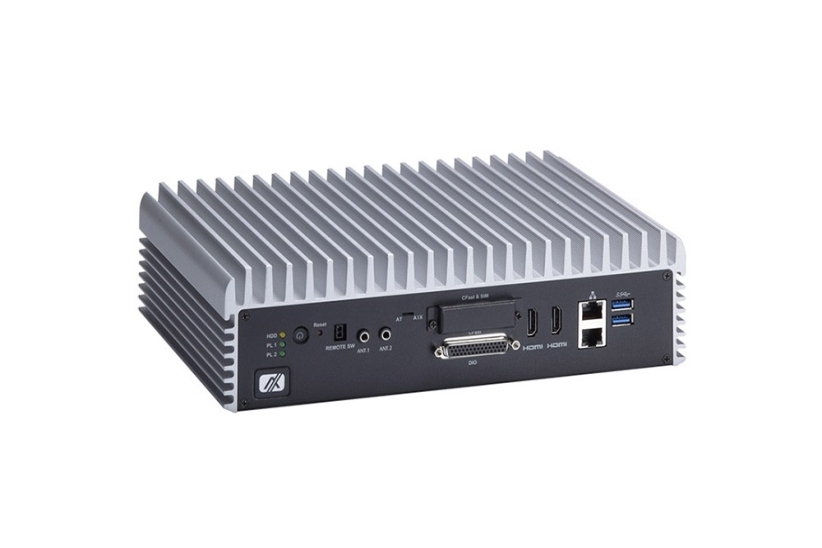

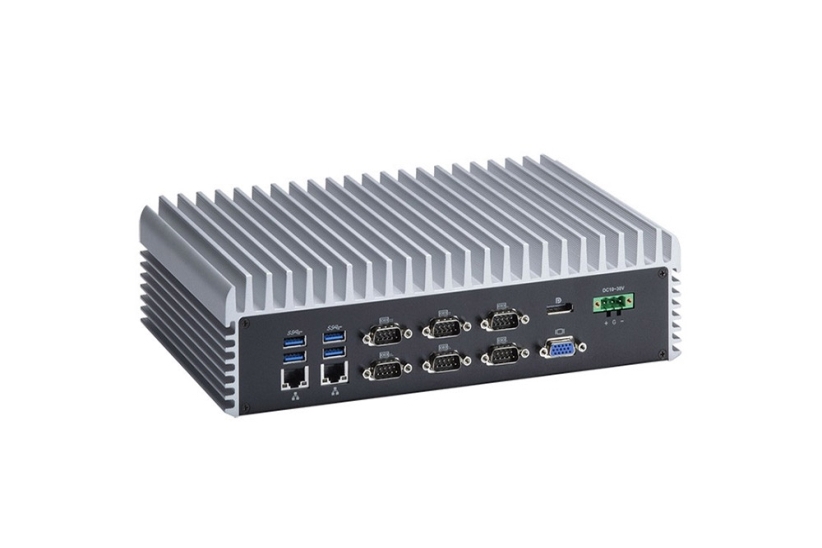

eBOX670-883-FL

Fanless Embedded System with LGA1150 Socket Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® Q87, 2 HDMI/VGA/DisplayPo

  • LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 & Celeron® processor (Haswell) with Intel® Q87
  • Fanless operation design with full feature I/O
  • 204-pin DDR3-1333/1600 SO-DIMM, up to 16GB
  • 2 2.5” SATA drive bay, 1 CFast™ slot and mSATA
  • 2 internal PCI Express Mini Card slots, 1 SIM slot
  • 2 HDMI, VGA and DisplayPort with triple-view supported
  • Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming
  • 9-36 VDC wide range power input

The eBOX670-883-FL supports the LGA1150 socket type for 4th generation Intel® Core™ i7/i5/i3 and Celeron® processors (formally codename: Haswell) with Intel® Q87 Express chipset. Under this rich support system, the eBOX670-883-FL allows wide operating temperature ranging from -40°C to +55°C for the most endurable operation. The outstanding embedded controller comes with four 10/100/1000 Ethernet ports, Jumbo Frame (9.5K), PXE Remote Boot, Teaming, and wake-on-LAN (WOL) function to highly enhance its network connection speed. Additionally, the eBOX670-883-FL supports up to three independent hi-resolution displays or a 4K display. Undoubtedly, this rugged fanless embedded computer is the best solution for any industrial field, including host computers, cloud computing servers, multimedia applications, and automation systems.

CPU
  • LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 45W)
Chipset
  • Intel® Q87
System Memory
  • 2 x 204-pin SO-DIMM DDR3-1333/1600, up to 16 GB
BIOS
  • AMI
COM
  • 6 x RS-232/422/485
USB
  • 6 x USB 3.0
Ethernet/PoE
  • 4 x 10/100/1000 Mbps (Intel® i210-IT, i217LM)
Display
  • 2 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Digital I/O
  • 32 channel programmable DI/DO
Audio
  • Mic-in/Line-out
Storage
  • 2 x 2.5” SATA HDD with RAID 0 & 1
  • 1 x CFast™
  • 1 x mSATA
Expansion
  • 2 x Full-size PCI Express Mini Card (USB+PCI Express signal)
  • 1 x SIM slot
Others
  • 3 x SMA type connector opening for antenna
  • 1 x VDC 9~36V power input connector
  • 1 x ATX power switch with status indicator
Power Supply
  • 9~36 VDC
Watchdog Timer
  • 255 levels, 1~255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +55°C (-40°F~131°F) (with W.T. SSD, CPU TDP 35W)
  • -40°C ~ +50°C (-40°F~122°F) (with W.T. SSD, CPU TDP 45W)
Relative Humidity
  • 10% ~ 90% , non-condensing
Vibration
  • 3 Grms w/ CFast™ (5 - 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 280 x 190 x 76 mm (11.02" x 7.48" x 2.99")
Weight (net/gross)
  • 3.8 kg (8.37 lb)/4.6 kg (10.14 lb)
Certifications
  • CE, EN60950 Compliance
EOS Support
  • WES8, WES7, Linux
Mounting
  • Wall mount
  • eBOX670-883-FL-DC
  • Fanless embedded system with LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® Q87, 2 HDMI /VGA/Display, 4 GbE LANs, 6 USB 3.0, CFast™, PCIe Mini Card and 9~36 VDC
  • 2.5” SATA HDD
  • 80GB or above
  • 2.5” SATA SSD
  • 40GB or above
  • DDR3 SO-DIMM
  • 1GB ~ 16GB
  • CFast™
  • 512MB or above
  • Wi-Fi module
  • 3G module
  • GPS module
  • Wall mount kit
  • 8816K6700A0E
  • Adapter
  • 50966D45000E (24 V 120 W)
  • Power cord
