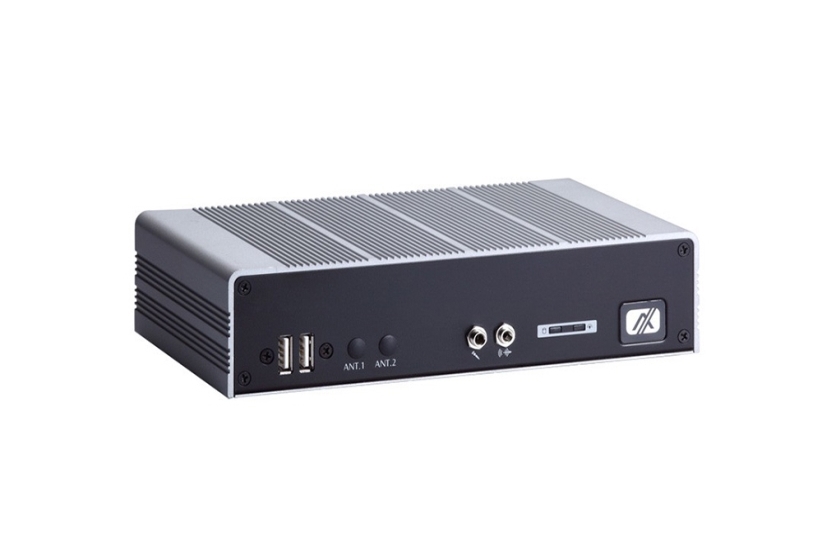

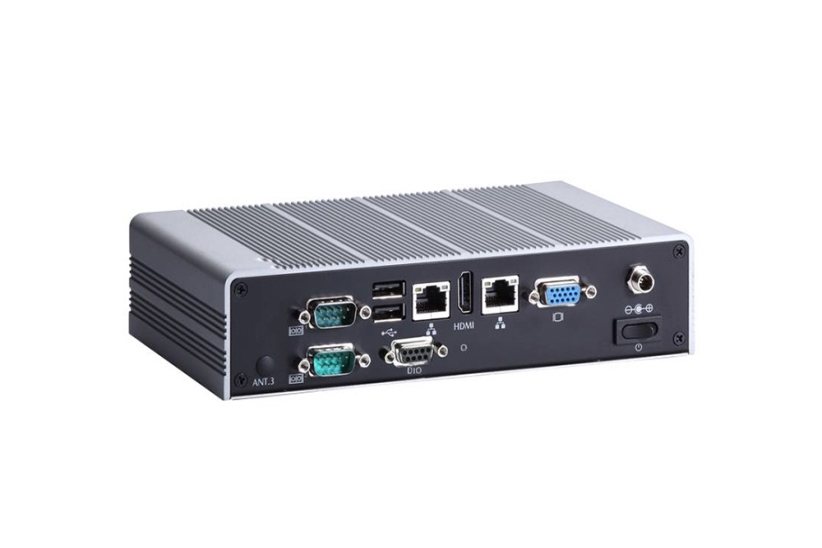

eBOX625-842-FL

Fanless Embedded System with Intel® Celeron® J1900 2.0 GHz, HDMI, VGA, 2 GbE LAN, 4 USB and 2 COM

  • Intel® Celeron® processor J1900 2.0 GHz
  • 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
  • Fanless operation design with full feature I/O
  • 2 RS-232/422/485 and 4 USB 2.0 ports
  • One 2.5” SATA drive bay and mSATA supported
  • 2 PCI Express Mini Card slots and 1 SIM slot
  • VGA and HDMI with dual-view supported
  • -20°C to +60°C wide operating temperature range

The eBOX625-842-FL industrial-grade, extreme slim, fanless embedded system is powered by quad cores Intel® Celeron™ J1900 2.0GHz SoC (system-on-a-chip). Through the use of Intel® Bay Trail-D type quad-core SoC and one 8 GB DDR3L-1066/1333 SO-DIMM socket, the energy-efficient embedded box computer offers outstanding performance, yet remarkably power efficient experience. Dramatically lighter and rugged enclosure enables the compact system to fit into limited space and withstand any harsh industry environment. The eBOX625-842-FL features dual displays and rich connection capability, including VGA, HDMI, 2 LAN ports, 2 COM ports, 4 USB 2.0 and 8-channel DI/DO, providing an ideal solution for variety applications from digital signage, transportation, kiosk, industrial control automation, medical equipment and IoT & M2M applications.

CPU
  • Intel® Celeron® processor J1900 2.0 GHz
Chipset
  • SoC Integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • 8-channel programmable digital I/O
Audio
  • Mic-in/Line-out
Storage
  • 1 x 2.5” SATA HDD
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card (USB + PCI Express signal)
  • 1 x Half-size PCI Express Mini Card (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 3 x SMA type connector opening for antenna
Power Supply
  • Input AC 90-264V, AC 36W adapter with lock
  • Output: DC 12V @ 3A
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -20°C ~ +55°C (with W.T. SSD/CAPA842)
Relative Humidity
  • 10% ~ 90% , non-condensing
Vibration
  • 3 Grms w/ SSD (5-500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 200 x 120 x 46 mm (7.87” x 4.72” x 1.81")
Weight (net/gross)
  • 1.1kg (2.43lb)/ 1.8kg (3.97lb)
Certifications
  • CE
EOS Support
  • WES8, WES7
Mounting
  • Wall mount
  • DIN-rail
  • VESA mount
  • eBOX625-842-FL-J1900-US
  • Fanless embedded system with Intel® Celeron® J1900 2.0 GHz, 2 GbE LANs, 4 USB, 2 COM, 8 CH DI/DO, 36W AC/DC adapter and US power cord
  • eBOX625-842-FL-J1900-EU
  • Fanless embedded system with Intel® Celeron® J1900 2.0 GHz, 2 GbE LANs, 4 USB, 2 COM, 8 CH DI/DO, 36W AC/DC adapter and EU power cord
  • 2.5” SATA HDD
  • 40GB or above
  • 2.5” SATA SSD
  • 4GB or above
  • DDR3L SO-DIMM
  • 1GB ~ 8GB
  • wall mount
  • 88606200010E
  • VESA arm kit
  • 88606200020E
  • DIN-rail kit
  • 88606200030E
  • Wi-Fi module
  • Power cord
