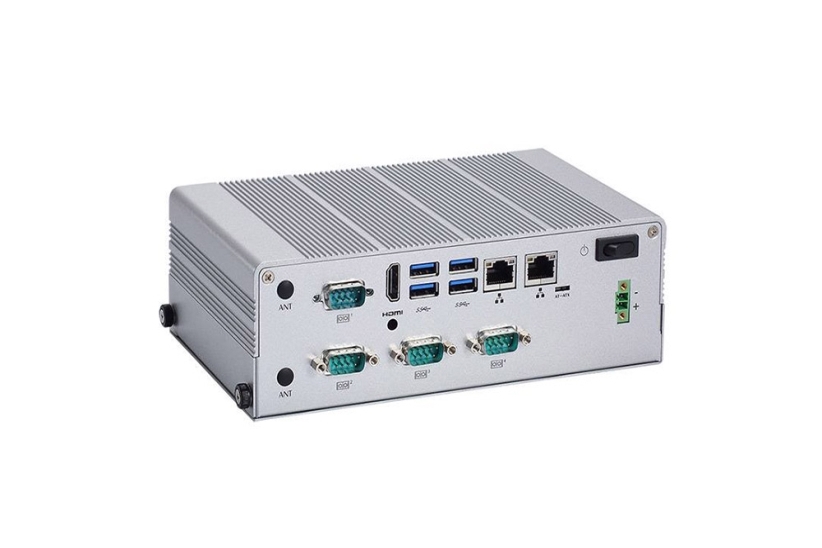

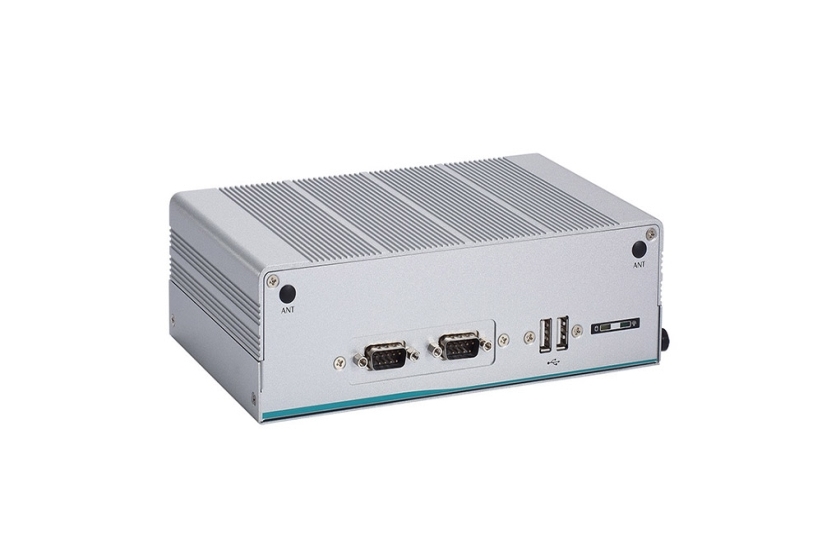

eBOX627-312-FL

Fanless Embedded System with Intel® Celeron® N3350 2.4 GHz/Pentium® N4200 2.5 GHz, HDMI, 2 GbE LANs, 6 USB, 4 COM and 9

  • Intel® Celeron® N3350/Pentium® N4200 onboard
  • 204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
  • Support HDMI, 2 GbE LANs, 4 COM and 6 USB
  • Flexible I/O Window supported
  • Trusted Platform Module 1.2 (TPM) 1.2
  • -20°C to +70°C operating temperature range
  • 9 to 36 VDC wide range DC input
  • AXView 2.0 intelligent remote monitoring software for IIoT

The eBOX627-312-FL is powered by the dual-core Intel® Celeron® processor N3350 (codename: Apollo Lake) with turbo boost up to 2.4GHz. The prominent fanless embedded system features an I/O module slot to offer maximum I/O density. It also provides a wide selection of modules to meet different user requirements and customization. Apart from the rich I/O and flexible expansions, Axiomtek's eBOX627-312-FL has TPM 1.2 supported to ensure a secure system environment. The powerful extreme-compact embedded system is not only well-suit for host computers, cloud computing servers, multimedia applications, but also for proper security surveillance and smart factory automation. Axiomtek's eBOX627-312-FL comes with an IP40-rated heavy-duty aluminum extrusion and steel case to withstand the rigors of day-to-day operation. The platform supports a wide range of 9 to 36 VDC power input with power protection. Furthermore, it can withstand a wide operating temperature range of -20°C to +70°C and up to 3G vibration endurance to ensure its excellent stability. To highly reduce deployment time, this fanless embedded PC reserves a space on the rear panel for customers to install an additional I/O module quickly and easily.

CPU
  • Intel® Celeron® Processor N3350, 2.4 GHz
  • Intel® Pentium® Processor N4200, 2.5 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1866, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 2 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps (Intel® i211-AT)
Display
  • 1 x HDMI (lockable)
Digital I/O
  • N/A
Audio
  • N/A
Storage

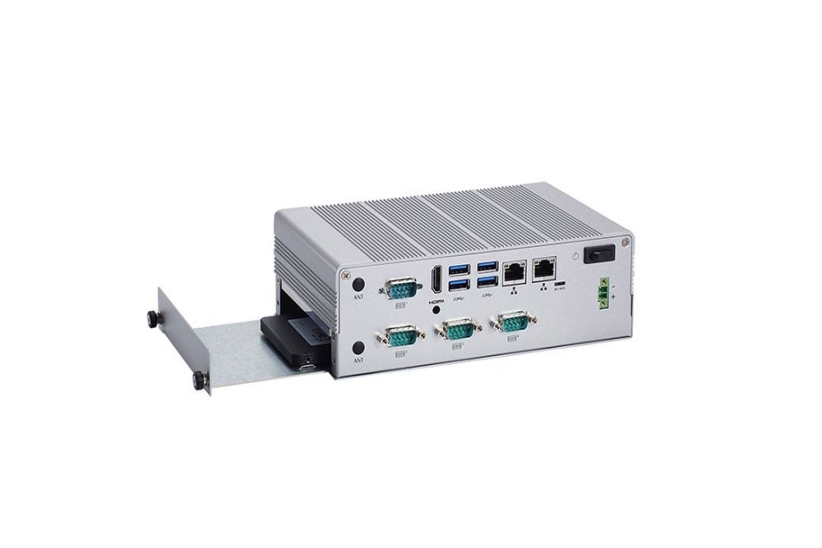

  • 1 x 2.5” HDD/SSD bay (max. up 9.5 mm height)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 4 x SMA type connector opening for antenna
  • 1 x AT/ATX switch
  • 1 x ATX power switch
  • 1 x Flexible I/O window (default: 2 x DB9 half cut bracket)
Power Supply
  • 1 x Phoenix type VDC power input connector
  • 9 to 36 VDC
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • Turbo Mode: -20°C to +65°C (-4°F to +149°F) (with W.T. SSD/DRAM for 9 to 36 VDC) (default)
  • Non-turbo Mode: -20°C to +70°C (-4°F to +158°F) (with W.T.SSD/DRAM for 12 or 24 VDC)
Relative Humidity
  • 10% to 95%, non-condensing
Vibration
  • 3 Grms with SSD (5 ~ 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 200 x 120 x 65 mm (7.87” x 4.72” x 2.55”)
Weight (net/gross)
  • 1.38 kg (3.04 lb)/2.08 kg (4.59 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win10 IoT, Linux
Mounting
  • Wall mount Kit
  • VESA mount kit
  • DIN-rail kit
  • eBOX627-312-FLDC-N3350
  • Fanless embedded system with Intel® Celeron® N3350 2.4 GHz, 1 HDMI, 2 GbE LANs, 6 USB, 4 COM and 9 to 36 VDC
  • eBOX627-312-FLDC-N4200
  • Fanless embedded system with Intel® Celeron® N4200 2.5 GHz, 1 HDMI, 2 GbE LANs, 6 USB, 4 COM and 9 to 36 VDC
  • 2.5” SATA HDD
  • 64GB or above
  • 2.5” SATA SSD
  • 100GB or above
  • DDR3L SO-DIMM
  • 2GB to 8GB
  • mSATA
  • 64GB or above
  • 8816K6271A0E
  • Wall mount Kit
  • 8816K6272A0E
  • VESA mount kit
  • 8816K6273A0E
  • DIN-rail kit
  • 50906D24000E
  • 24V 120W adapter
  • 881606209A0E
  • Wi-Fi module
  • 3G/LTE module
  • AX92903 (E392903102)
  • CANbus PCI Express Mini module
  • AX92903 (E392903103)
  • CAN module with CANOpen
  • AX92902 (E392902103)
  • LAN PCI Express Mini module
  • AX92906 (E392906101)
  • COM PCI Express Mini module
  • AX92904 (E392904102)
  • DIO PCI Express Mini module
