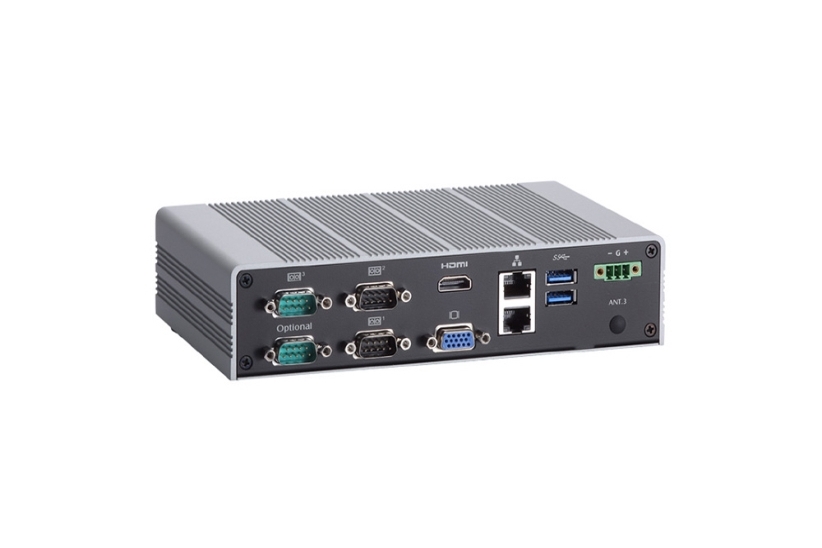

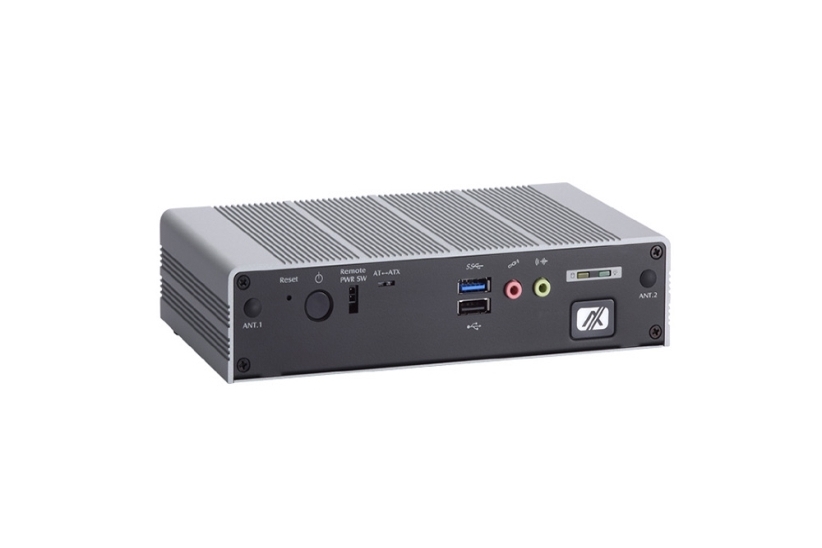

eBOX626-853-FL

Fanless Embedded System with Intel® Celeron® Processor N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, 2 PCI Express Mini Ca

  • Intel® Celeron® processor N3160 2.24 GHz (Braswell)
  • HDMI and VGA with dual independent displays
  • Supports 4 COM and 4 USB
  • 2 GbE LANs support WoL, Teaming and PXE
  • 2 PCI Express Mini Card slots for WLAN/WWAN/mSATA modules
  • 9 to 36 VDC wide range power input
  • -20°C to +60°C operating temperature range

The eBOX626-853-FL is a slim-type fanless embedded system with wide range temperature and wide range DC input support. The cost effective compact embedded box PC is designed to support the Intel® Celeron® processor quad-core N3160 (codename: Braswell) integrated with Intel® Gen 8 graphics and DirectX 11.1. One DDR3L 1333/1600 SO-DIMM socket supports up to 8 GB memory. The IP40-rated industrial computer eBOX626-853-FL combines low power consumption with high performance graphics and computing for smart automation, transportation, industrial gateway, multiple media kiosk and other IoT&M2M applications.

CPU
  • Intel® Celeron® processor N3160 2.24 GHz (2M up to 2.24 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8 GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 3 x RS-232
USB
  • 3 x USB 3.0
  • 1 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps (Intel® i211-AT)
Display
  • 1 x HDMI (4K supported)
  • 1 x VGA
Digital I/O
  • 8-CH programmable DIO (optional)
Audio
  • MIC-in/Line-out
Storage
  • 1 x 2.5” SATA HDD drive bay (max. up 15 mm height)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal)
  • 1 x Full-size PCI Express Mini Card slot (PCI Express + SATA signal)
  • 1 x SIM slot
Others
  • 3 x Antenna opening
  • 1 x Phoenix type VDC power input connector
Power Supply
  • 42.5 W, 9 to 36 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • Standard: -20°C to +60°C (-4°F to +140°F)
  • Boost mode: -20°C to +55°C (-4°F to +131°F) (with W.T. SSD/DRAM)
Relative Humidity
  • 10% to 95%, non-condensing
Vibration
  • 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 200 x 120 x 46 mm (7.87” x 4.72” x 1.81”)
Weight (net/gross)
  • 1.2 kg (2.65 lb)/1.9 kg (4.19 lb)
Certifications
  • CE
EOS Support
  • WES7, WE8S, Linux
Mounting
  • Wall mount
  • DIN-rail
  • VESA mount
  • eBOX626-853-FL-N3160-DC
  • Fanless embedded system with Intel® Celeron® N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, 2 PCI Express Mini Card slots and 9 to 36 VDC
  • eBOX626-853-FL-N3160-DC-DIO
  • Fanless embedded system with Intel® Celeron® N3160, VGA, HDMI, 3 COM, 1 DIO, 2 GbE LANs, 4 USB, 2 PCI Express Mini Card slots and 9 to 36 VDC
  • 2.5” SATA HDD
  • 64GB or above
  • 2.5” SATA SSD
  • 100GB or above
  • DDR3L SO-DIMM
  • 2GB to 8GB
  • mSATA
  • 64MB or above
  • 8816K6271A0E
  • Wall mount Kit
  • 8816K6272A0E
  • VESA mount kit
  • 8816K6273A0E
  • DIN-rail kit
  • 8816K6603A0E
  • Wi-Fi module
  • 3G/LTE module
