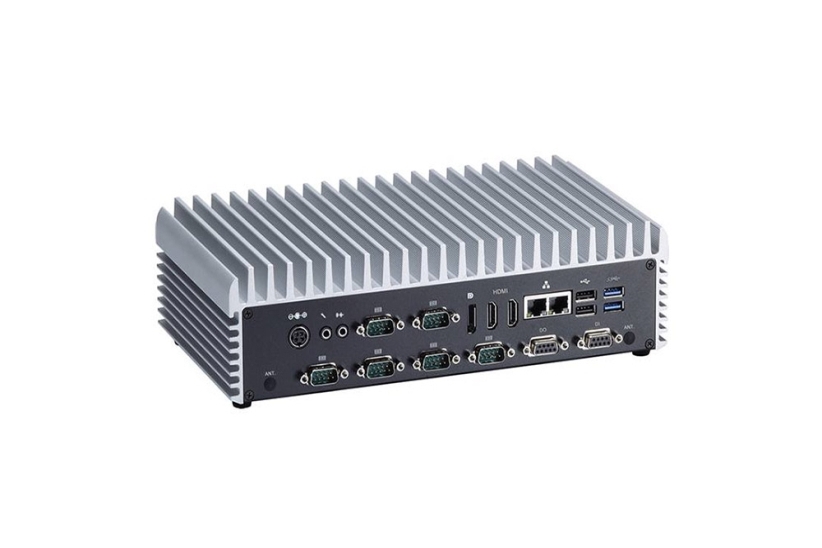

eBOX635-881-FL

Fanless Embedded System with LGA1150 Socket 4th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® H81, 2 HDMI/ VGA/

  • LGA1150 socket 4th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Haswell/ Haswell-Refresh)
  • Intel® H81 chipset
  • 204-pin DDR3-1333/1600 SO-DIMM, up to 8GB
  • One 2.5” SATA drive bay and 1 CFast™ slot
  • 2 internal PCI Express Mini Card slots, 1 SIM slot
  • 2 HDMI, VGA and DisplayPort with dual independent displays
  • (H81) or triple independent displays (Q87) supported
  • Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming supported

The eBOX635-881-FL supports the 4th Generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processor with Intel® H81 chipset. The super light yet compact eBOX635-881-FL comes packaged in an IP40-rated aluminum and cold-rolled steel enclosure and is designed to operate at temperatures ranging from -20°C to +50°C for use in the extremely environments. The fanless embedded system supports six jumper-less RS-232/422/484 and sixteen DI/DO ports along with three display outputs of two HDMI, DisplayPort and VGA for applications used in transportation, POS, kiosk, industrial control automation and medical equipment. Two PCI Express Mini Card slots are added to the system for greater expansion capability. One SIM slot is also available for 3G/4G, GPS, Wi-Fi and Bluetooth applications, allowing for more efficient networking options.

CPU
  • LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 45W)
Chipset
  • Intel® H81
System Memory
  • 1 x 204-pin SO-DIMM DDR3-1333/1600, up to 8 GB
BIOS
  • AMI
COM
  • 6 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 4 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000Mbps (Intel® i210-AT, i217-LM)
Display
  • 2 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Digital I/O
  • 8-IN & 8-OUT
Audio
  • Mic-in/Line-out
Storage
  • 1 x 2.5” SATA HDD
  • 1 x CFast™
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB and PCI Express signal)
  • 1 x Half-size PCI Express Mini Card slot (USB and PCI Express signal)
  • 1 x SIM slot
Others
  • 3 x SMA type connector opening for antenna
  • 1 x VDC 19V/12V power input connector
  • 1 x ATX power switch with status indicator
Power Supply
  • Input: AC 90-264V, AC 150W
    Output: DC 19V @ 7.89A
  • Input: AC 90-264V, AC 102W
    Output: DC 12V @ 8.5A
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -20°C ~ +50°C (-4°F ~ 122°F) (with W.T. SSD, CPU TDP 35/45W)
Relative Humidity
  • 10% ~ 90% , non-condensing
Vibration
  • 3 Grms w/ CFast™ (5 - 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 280 x 150 x 76 mm (11.02" x 5.91" x 2.99")
Weight (net/gross)
  • 2.5 kg (5.51 lb)/ 4.5 kg (9.92 lb)
Certifications
  • CE, EN60950 compliance
EOS Support
  • WES8, WES7, Linux
Mounting
  • Wall mount
  • DIN-rail
  • eBOX635-881-FL Fanless embedded system with LGA1150 socket 4th generation Intel® i7/i5/i3 & Celeron® processor, 2 HDMI, VGA, DisplayPort, 2 GbE LANs, 2 USB 3.0, 6 COM ports and 19/12 VDC adapter
  • 2.5” SATA HDD
  • 80GB or above
  • 2.5” SATA SSD
  • 40GB or above
  • DDR3 SO-DIMM
  • 1GB ~ 8GB
  • CFast™
  • 512MB or above
  • Wi-Fi module
  • 3G module
  • GPS module
  • Wall mount kit
  • 8816K635010E
  • DIN-rail kit
  • 8816K671030E
  • Power cord
